Agenda

Introduce boot code and app code modification for RL78
- In this section , use RL78 F24 as example
reference document
- How to set up boot code and app project
  How to Divide Boot and Flash Areas
  document no. : R20UT3475EJ0300
- How to know the MCU need use which flash library type (code flash)
  RL78 FAMILY FLASH MEMORY REPROGRAMMING SOFTWARE INTRODUCTION
  - RL78 F23/F24 : Renesas Flash Driver RL78 Type 02 (document no. : R20UT5009EJ0110)
    Renesas Flash Driver RL78 Type 02
  - RL78 G22/G23/G24 : Renesas Flash Driver RL78 Type 01
  - RL78 G15/G16 : Renesas Flash Sample Program Type 01
  - RL78 x1x : Flash Self Programming Library Type01

code base : polling

reference code base : boot code (RL78 F24)
RL78_F24_Boot_loader_UART
RL78_F24_Boot_loader_UART_e2
reference code base : app code (RL78 F24)
RL78_F24_Boot_loader_app
RL78_F24_Boot_loader_app_e2
- interface : xmodem by UART (polling)
- interface : IICA0 (polling)
- LDROM address : 0x0000 , size : 20K
- APROM address : 0x5000 , size : 236K (CRC addr:3FFFC)
- check define as below

#define ENABLE_UART_BL                                  (1)
#define ENALBE_IICA0_BL                                 (0)

code base : interrupt

reference code base : boot code (RL78 F24)
RL78_F24_Boot_loader_UART_CRC
reference code base : app code (RL78 F24)
RL78_F24_Boot_loader_app_CRC
- interface : xmodem by UART (polling) + TIMER interrupt
- interface : IICA0 (interrupt) + TIMER interrupt
- LDROM address : 0x0000 , size : 20K
- APROM address : 0x5000 , size : 235K (CRC addr:3FBFC)
- check define as below

#define ENABLE_UART_PRINTF                      (1)
#define ENABLE_UART_BL                          (1)

#define ENALBE_TIMER_TAU0_1_IRQ                 (1)

#define ENALBE_IICA0_BL                         (0)
#if ENALBE_IICA0_BL
#define ENALBE_IICA0_BL_USE_IRQ                 (1)
#endif

Key point

project setting for boot code and app code
target MCU platform flash library usage and setting
target interface initial and receive data

Flash architecture

MCU flash will split to Boot area (boot code) and Flash area (app code)

How to Divide Boot and Flash Areas

Scenario : Boot area (boot code)

use UART0 : P15/TX , P16/RX , to check terminal log meesgae
condition_check :
- detect flag store in ram specific area (ex : 0xFF700) , to determine if re-boot from Flash area (app code)
- if no app code in app section

base on the flag or BUTTON presssed (active LOW) , to determine
- need to stay in boot code , to receive data flow from interface (ex : I2C , UART , ...)
- ready to jump into Flash area (app code)

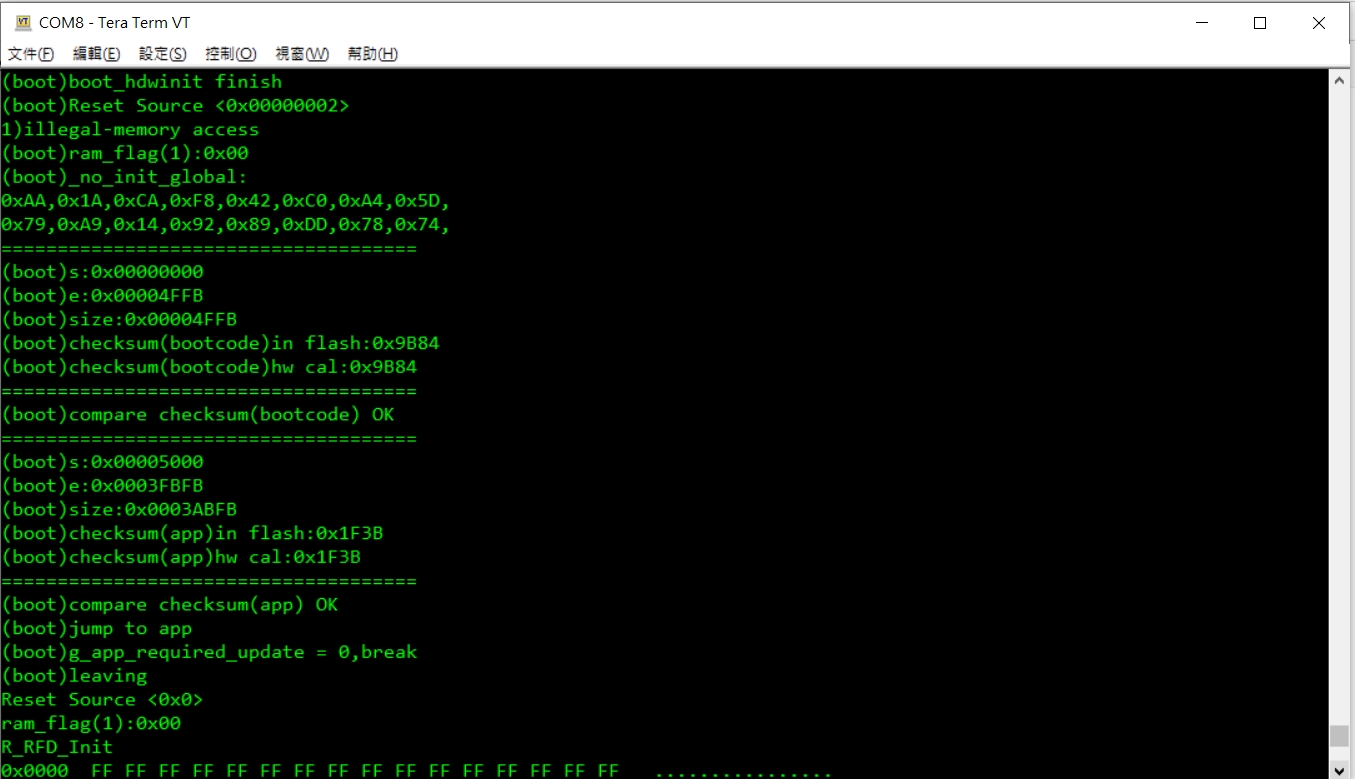

verify_application_chksum :
- compare CRC checksum when power on

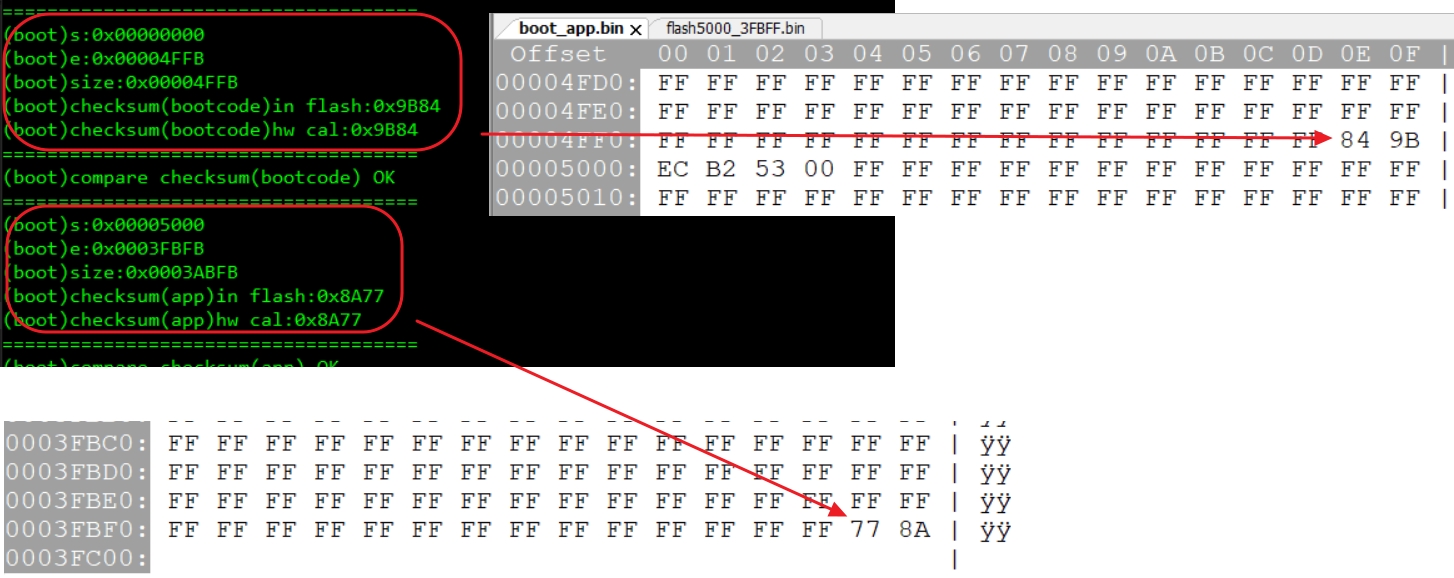

- at Flash area (app code) last 4 bytes , will store CRC data
- calculate the Flash area (app code) CRC byte (caculate_crc32_checksum) and compare to the CRC data store in last 4 bytes of Flash area (app code)
- if comapare error , stay in Boot area (boot code)

any other custom user defined condition
programming Flash area (app code) flow
- refer the code flash sample function : Sample_CodeFlashControl and modify as :
  - Sample_CodeFlashControl_Erase
  - Sample_CodeFlashControl_SingleWrite
  - KEY POINT : SAMPLE_START_SECTION_SMP_CF
- after Flash area (app code) update finish ,
  - UART (xmodem , UART1 : P74/TX , P75/RX) : reboot MCU
  - I2C (IICA0 , P62/SCL , P63/SDA): reboot MCU

xmodem

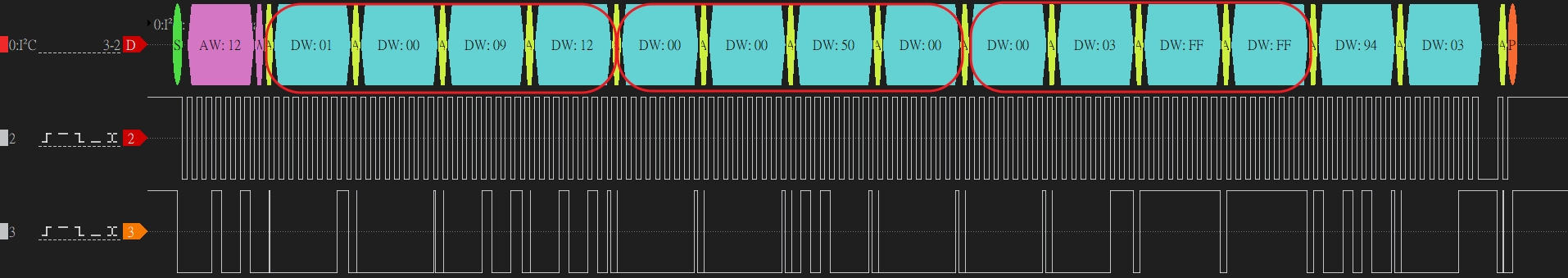

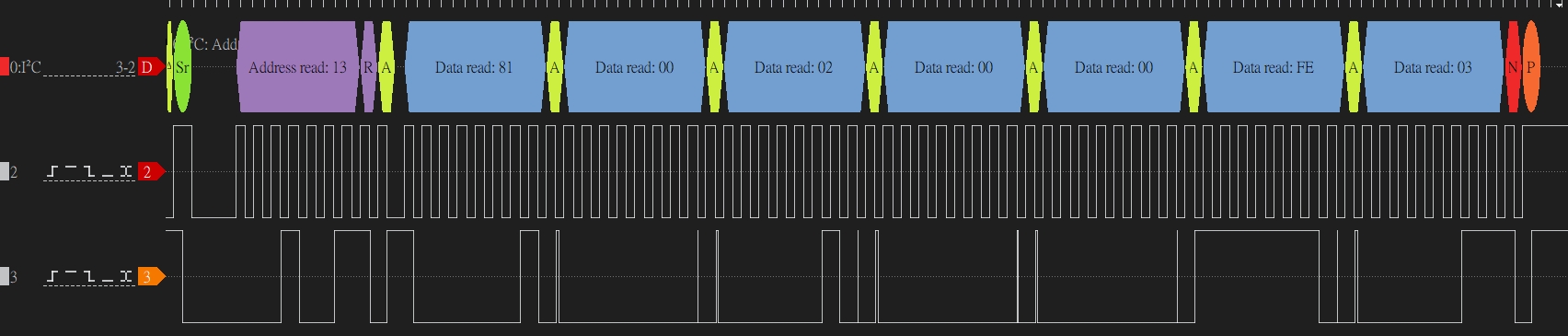

I2C

if CRC compare OK and no detect update inquiry , jump to Flash area (app code)

at project:RL78_F24_Boot_loader_UART_CRC , add timer to control reset flow
- when entry boot code in upgrade process , count down to 30 sec and execute reboot MCU if no receive data from interface (XMODEM , IICA0)

Scenario : Flash area (app code)

set ram flag store in ram specific area (ex : 0xFF700)
- change flag data and execute reset , when
  - receive interface boot command (ex : I2C , UART , ...)

any other custom user defined condition (ex : ADC , GPIO etc)
use terminal (UART0 : P15/TX , P16/RX) , by press digit 3 ,to set ram flag and reset

by press digit 1 to write data flash
by press digit 2 to read data flash

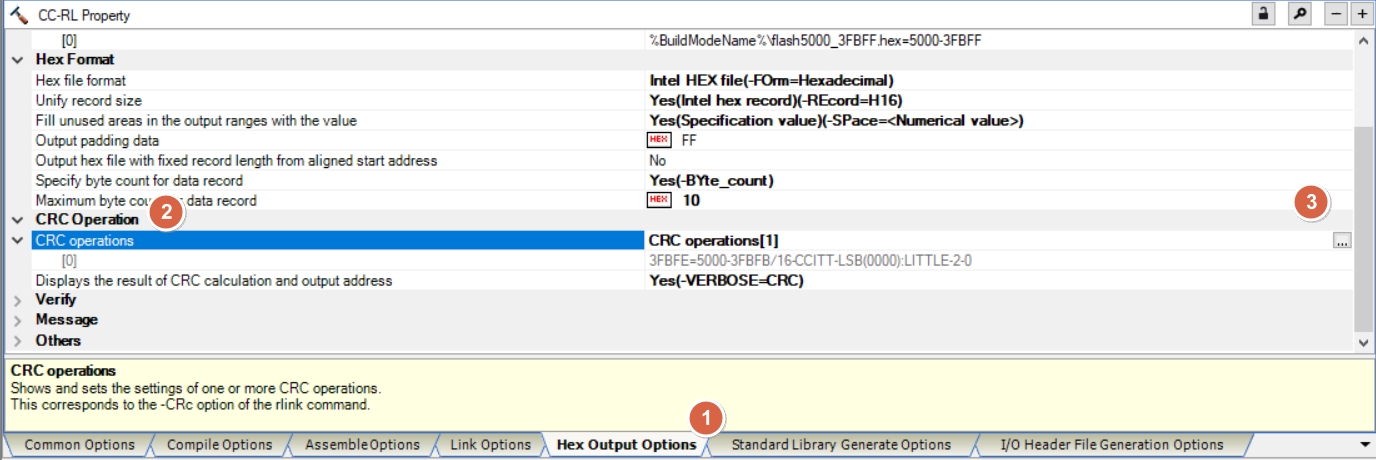

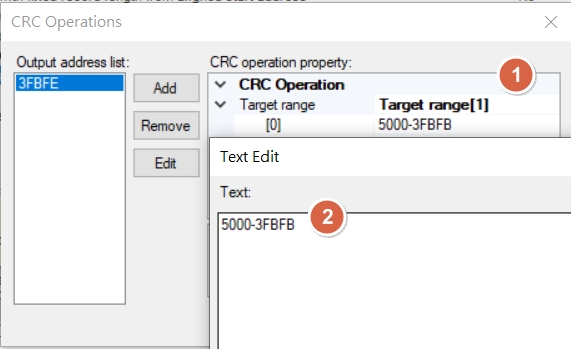

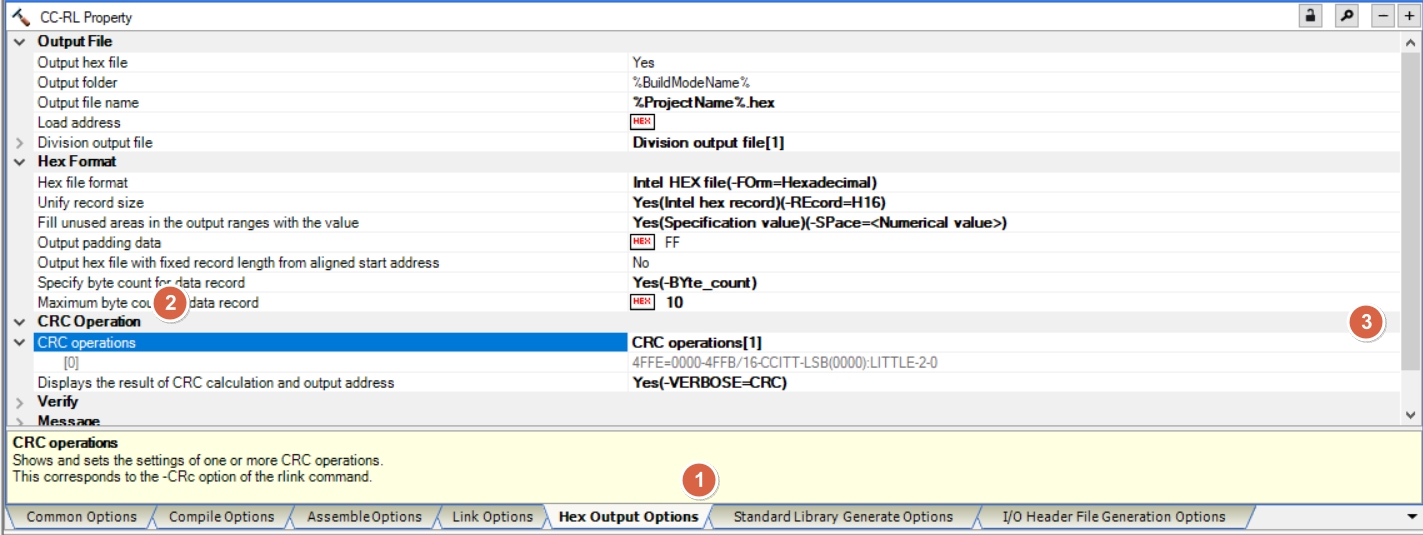

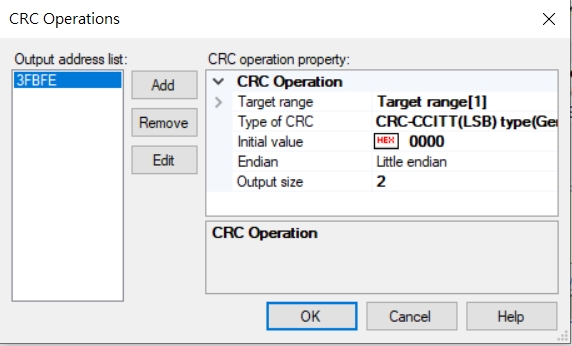

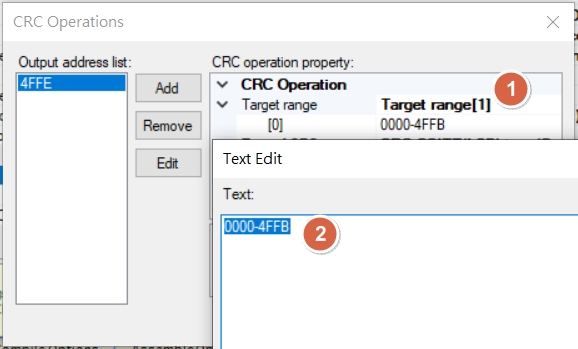

at Flash area (app code) last 4 bytes , will add CRC data after project compile finish

Project : boot code/app code modifictaion - ftable.inc

create and register below file in Boot area (boot code) and Flash area (app code) project
ftable.inc

FLASH_TABLE       .EQU  0x5000
INTERRUPT_OFFSET  .EQU  0x100

the vaule will be boot code size (app code start address)
Due to mirror memory limitations, constant data cannot exist before mirror address - 0xF0000 (ex : 0xF5000 - 0xF0000 = 0x5000)
below is each RL78 platform minimum boot code code size definition , FLASH_TABLE MUST set bigger or equal to definition

RL78	const size
F24	0x5000
F23	0x3000
F13	0x2000
G15	0x800
G16	0x800

below is default project map file after compile

RL78 F24

RL78 F23

RL78 F13

RL78 G15

RL78 G16

How to Divide Boot and Flash Areas

Project : boot code modifictaion - cstart.asm

refer to How to Divide Boot and Flash Areas :
3.1.1 Modifying the startup routine (cstart.asm)

use smart config generate code
copy cstart.asm to boot code project root folder
register to Boot area (boot code) project , then start to modify

(1)
include ftable.inc

(2)
comment out conditional check

(3)
modify the section name

(4)
comment out conditional check and assembly instructions

(5)
modify main function name (boot_main)
add branch instructions : FALSH_TABLE

(6)
comment out .const section

(7)
modify bsp_init_system function name

(8)
modify hardware init function name (boot_hdwinit)

(9)
increase bss size to 0x500

(10)
add ram flag section

  .SECTION .boot_info, BSS
  .L_section_boot_info:

(11)
add code flash library section

  .SECTION RFD_DATA_nR, DATA
  .SECTION RFD_CMN_fR, TEXTF
  .SECTION RFD_CF_fR, TEXTF
  .SECTION SMP_CMN_fR, TEXTF
  .SECTION SMP_CF_fR, TEXTF

	; copy RFD external variables having initial value (near)
	MOV	ES,#HIGHW(STARTOF(RFD_DATA_n))
	MOVW	BC,#LOWW(SIZEOF(RFD_DATA_n))
	BR	$.L2_RFD_DATA
.L1_RFD_DATA:
	DECW	BC
	MOV	A,ES:LOWW(STARTOF(RFD_DATA_n))[BC]
	MOV	LOWW(STARTOF(RFD_DATA_nR))[BC],A
.L2_RFD_DATA:
	CLRW	AX
	CMPW	AX,BC
	BNZ	$.L1_RFD_DATA


	; copy code to RAM (RFD_CMN)
	MOV	C,#HIGHW(STARTOF(RFD_CMN_f))
	MOVW	HL,#LOWW(STARTOF(RFD_CMN_f))
	MOVW	DE,#LOWW(STARTOF(RFD_CMN_fR))
	BR	$.L12_TEXT
.L11_TEXT:
	MOV	A,C
	MOV	ES,A
	MOV	A,ES:[HL]
	MOV	[DE],A
	INCW	DE
	INCW	HL
	CLRW	AX
	CMPW	AX,HL
	SKNZ
	INC	C
.L12_TEXT:
	MOVW	AX,HL
	CMPW	AX,#LOWW(STARTOF(RFD_CMN_f) + SIZEOF(RFD_CMN_f))
	BNZ	$.L11_TEXT

	; copy code to RAM (RFD_CF)
	MOV	C,#HIGHW(STARTOF(RFD_CF_f))
	MOVW	HL,#LOWW(STARTOF(RFD_CF_f))
	MOVW	DE,#LOWW(STARTOF(RFD_CF_fR))
	BR	$.L22_TEXT
.L21_TEXT:
	MOV	A,C
	MOV	ES,A
	MOV	A,ES:[HL]
	MOV	[DE],A
	INCW	DE
	INCW	HL
	CLRW	AX
	CMPW	AX,HL
	SKNZ
	INC	C
.L22_TEXT:
	MOVW	AX,HL
	CMPW	AX,#LOWW(STARTOF(RFD_CF_f) + SIZEOF(RFD_CF_f))
	BNZ	$.L21_TEXT

	; copy code to RAM (SMP_CMN)
	MOV	C,#HIGHW(STARTOF(SMP_CMN_f))
	MOVW	HL,#LOWW(STARTOF(SMP_CMN_f))
	MOVW	DE,#LOWW(STARTOF(SMP_CMN_fR))
	BR	$.L32_TEXT
.L31_TEXT:
	MOV	A,C
	MOV	ES,A
	MOV	A,ES:[HL]
	MOV	[DE],A
	INCW	DE
	INCW	HL
	CLRW	AX
	CMPW	AX,HL
	SKNZ
	INC	C
.L32_TEXT:
	MOVW	AX,HL
	CMPW	AX,#LOWW(STARTOF(SMP_CMN_f) + SIZEOF(SMP_CMN_f))
	BNZ	$.L31_TEXT

	; copy code to RAM (SMP_CF)
	MOV	C,#HIGHW(STARTOF(SMP_CF_f))
	MOVW	HL,#LOWW(STARTOF(SMP_CF_f))
	MOVW	DE,#LOWW(STARTOF(SMP_CF_fR))
	BR	$.L42_TEXT
.L41_TEXT:
	MOV	A,C
	MOV	ES,A
	MOV	A,ES:[HL]
	MOV	[DE],A
	INCW	DE
	INCW	HL
	CLRW	AX
	CMPW	AX,HL
	SKNZ
	INC	C
.L42_TEXT:
	MOVW	AX,HL
	CMPW	AX,#LOWW(STARTOF(SMP_CF_f) + SIZEOF(SMP_CF_f))
	BNZ	$.L41_TEXT

boot code : Compare below file to see the difference
after modification :
RL78_F24_Boot_loader_UART\cstart.asm
https://github.com/released/RL78_F24_Boot_loader_UART/blob/main/cstart.asm

code flash :
RL78_F24_Boot_loader_UART\RFDRL78T02\sample\RL78_F24\CF\CCRL\source\cstart.asm

smart configurator original file :
RL78_F24_Boot_loader_UART\src\smc_gen\r_bsp\mcu\all\cstart.asm

How to Divide Boot and Flash Areas

Project : boot code modifictaion - stkinit.asm

refer to How to Divide Boot and Flash Areas :
3.1.2 Modifying hdwinit.asm and stkinit.asm

use smart config generate code
copy stkinit.asm to boot code project root folder
register to Boot area (boot code) project , then start to modify

modify the section name

How to Divide Boot and Flash Areas

Project : boot code modifictaion - project tree

after modification , Boot area (boot code) project will increse 3 files as below

make sure manual register cstart.asm , stkinit.asm if file missing after generate code

How to Divide Boot and Flash Areas

Project : boot code modifictaion - add CODE FLASH library

base on RL78 MCU , register correspond CODE FLASH library into Boot area (boot code) project and exclude uncessary file (data flash , extra area)

refer to RL78_F24_Boot_loader_UART\RFDRL78T02\sample\common\source\codeflash\sample_control_code_flash.c
KEY POINT : SAMPLE_START_SECTION_SMP_CF
Sample_CodeFlashControl_Erase

R_RFD_FAR_FUNC e_sample_ret_t Sample_CodeFlashControl_Erase(uint32_t i_u32_start_addr)
{
    /* Local variable definition */
    e_rfd_ret_t    l_e_rfd_ret_status;
    e_sample_ret_t l_e_sam_ret_status;
    e_sample_ret_t l_e_sam_ret_value;
    bool           l_e_sam_error_flag;
    // uint16_t       l_u16_count;
    uint16_t       l_u16_block_number;
    // uint32_t       l_u32_check_write_data_addr;

    /* Set local variables */
    l_e_sam_ret_value           = SAMPLE_ENUM_RET_STS_OK;
    l_e_sam_error_flag          = false;

    /* This expression (actual block number) never exceeds the range of casting uint16_t */
    l_u16_block_number          = (uint16_t)(i_u32_start_addr >> SAMPLE_VALUE_U08_SHIFT_ADDR_TO_BLOCK_CF);
    // l_u32_check_write_data_addr = i_u32_start_addr;

    /******************************************************************************************************************
     * Set the code flash programming mode
     *****************************************************************************************************************/
    l_e_rfd_ret_status = R_RFD_SetFlashMemoryMode(R_RFD_ENUM_FLASH_MODE_CODE_PROGRAMMING);

    if (R_RFD_ENUM_RET_STS_OK != l_e_rfd_ret_status)
    {
        l_e_sam_error_flag = true;
        l_e_sam_ret_value  = SAMPLE_ENUM_RET_ERR_MODE_MISMATCHED;
    }
    else
    {
        /* No operation */
    }

    /******************************************************************************************************************
     * BLANKCHECK -> ERASE
     *****************************************************************************************************************/
    if (false == l_e_sam_error_flag)
    {
        /* BLANKCHECK (1 block) */
        R_RFD_BlankCheckCodeFlashReq(l_u16_block_number);
        l_e_sam_ret_status = Sample_CheckCFDFSeqEnd();

        if (SAMPLE_ENUM_RET_ERR_ACT_BLANKCHECK == l_e_sam_ret_status)
        {
            /* ERASE (1 block) */
            R_RFD_EraseCodeFlashReq(l_u16_block_number);
            l_e_sam_ret_status = Sample_CheckCFDFSeqEnd();

            if (SAMPLE_ENUM_RET_STS_OK != l_e_sam_ret_status)
            {
                l_e_sam_error_flag = true;
                l_e_sam_ret_value  = SAMPLE_ENUM_RET_ERR_CMD_ERASE;
            }
            else
            {
                /* No operation */
            }
        }
        else if (SAMPLE_ENUM_RET_STS_OK != l_e_sam_ret_status)
        {
            l_e_sam_error_flag = true;
            l_e_sam_ret_value  = SAMPLE_ENUM_RET_ERR_CMD_BLANKCHECK;
        }
        else
        {
            /* No operation */
        }
    }
    else /* true == l_e_sam_error_flag */
    {
        /* No operation */
    }

    /******************************************************************************************************************
     * Set non-programmable mode
     *****************************************************************************************************************/
    l_e_rfd_ret_status = R_RFD_SetFlashMemoryMode(R_RFD_ENUM_FLASH_MODE_CODE_TO_NONPROGRAMMABLE);

    if (R_RFD_ENUM_RET_STS_OK != l_e_rfd_ret_status)
    {
        l_e_sam_error_flag = true;
        l_e_sam_ret_value  = SAMPLE_ENUM_RET_ERR_MODE_MISMATCHED;
    }
    else
    {
        /* No operation */
    }

    return (l_e_sam_ret_value);
}

Sample_CodeFlashControl_SingleWrite

R_RFD_FAR_FUNC e_sample_ret_t Sample_CodeFlashControl_SingleWrite(uint32_t i_u32_start_addr,
                                                      uint8_t __near * inp_u08_write_data)
{
    /* Local variable definition */
    e_rfd_ret_t    l_e_rfd_ret_status;
    e_sample_ret_t l_e_sam_ret_status;
    e_sample_ret_t l_e_sam_ret_value;
    bool           l_e_sam_error_flag;
    uint16_t       l_u16_count = 0;
    // uint16_t       l_u16_block_number;
    // uint32_t       l_u32_check_write_data_addr;

    /* Set local variables */
    l_e_sam_ret_value           = SAMPLE_ENUM_RET_STS_OK;
    l_e_sam_error_flag          = false;

    /* This expression (actual block number) never exceeds the range of casting uint16_t */
    // l_u16_block_number          = (uint16_t)(i_u32_start_addr >> SAMPLE_VALUE_U08_SHIFT_ADDR_TO_BLOCK_CF);
    // l_u32_check_write_data_addr = i_u32_start_addr;

    /******************************************************************************************************************
     * Set the code flash programming mode
     *****************************************************************************************************************/
    l_e_rfd_ret_status = R_RFD_SetFlashMemoryMode(R_RFD_ENUM_FLASH_MODE_CODE_PROGRAMMING);

    if (R_RFD_ENUM_RET_STS_OK != l_e_rfd_ret_status)
    {
        l_e_sam_error_flag = true;
        l_e_sam_ret_value  = SAMPLE_ENUM_RET_ERR_MODE_MISMATCHED;
    }
    else
    {
        /* No operation */
    }

    /******************************************************************************************************************
     * WRITE
     *****************************************************************************************************************/
    if (false == l_e_sam_error_flag)
    {
        // for (l_u16_count = 0u; l_u16_count < i_u16_write_data_length; l_u16_count += 4u)
        {
            // R_RFD_WriteCodeFlashReq(i_u32_start_addr + l_u16_count, &inp_u08_write_data[l_u16_count]);
            R_RFD_WriteCodeFlashReq(i_u32_start_addr , &inp_u08_write_data[l_u16_count]);
            l_e_sam_ret_status = Sample_CheckCFDFSeqEnd();

            if (SAMPLE_ENUM_RET_STS_OK != l_e_sam_ret_status)
            {
                l_e_sam_error_flag = true;
                l_e_sam_ret_value  = SAMPLE_ENUM_RET_ERR_CMD_WRITE;
                // break;
            }
            else
            {
                /* No operation */
            }
        }
    }
    else /* true == l_e_sam_error_flag */
    {
        /* No operation */
    }

    /******************************************************************************************************************
     * Set non-programmable mode
     *****************************************************************************************************************/
    l_e_rfd_ret_status = R_RFD_SetFlashMemoryMode(R_RFD_ENUM_FLASH_MODE_CODE_TO_NONPROGRAMMABLE);

    if (R_RFD_ENUM_RET_STS_OK != l_e_rfd_ret_status)
    {
        l_e_sam_error_flag = true;
        l_e_sam_ret_value  = SAMPLE_ENUM_RET_ERR_MODE_MISMATCHED;
    }
    else
    {
        /* No operation */
    }

    return (l_e_sam_ret_value);
}

Renesas Flash Driver RL78 Type 02 User’s Manual

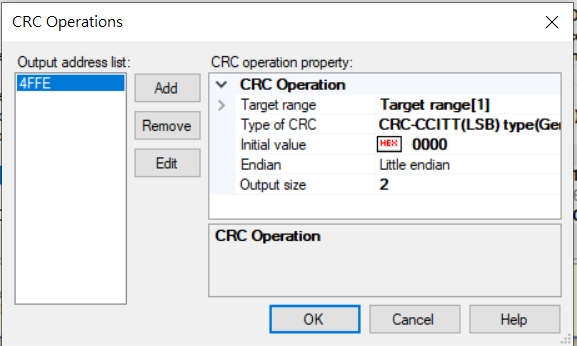

Project : boot code modifictaion - add CRC compare (1)

register CRC compare into Boot area (boot code) project
purpose:
- condition check (check and compare app code CRC , prevent jump into corrupted app code)

Project : boot code modifictaion - add CRC compare (2)

CRC in app code last 4 bytes will be added after compile at app code project by use SRecord tool

Project : boot code modifictaion - use smart config tool to generate driver

use smart config to generate target interface drvier , to use in boot code project
- make sure manual register cstart.asm , stkinit.asm if file missing after generate code

move those driver function into boot_main.c (to reduce boot code size and prevent duplicate function call in app code)
exclude the driver code (c code , asm code)

smart configurator system setting as below

Project : boot code modifictaion - boot_main.c

for boot_hdwinit() , will be initialized by cstart.asm
- copy below function from driver and rename with prefix: boot_ in boot_main.c for boot_hdwinit
  - bsp_init_system()
    - copy mcu_clock_setup()
  - R_Config_PORT_Create
  - if use UART for debug or download
    - R_SAU0_Create()
    - R_Config_UART0_Start()
    - R_SAU1_Create()
    - R_Config_UART1_Start()
  - R_Config_IICA0_Create()
  - R_Config_TAU0_0_Start , for delay function (1ms)
for boot_main() , will start with condition check and judge if need to start programming

Project : boot code modifictaion - I2C command flow

No READ operation
No Authentication operation

Project : boot code modifictaion - I2C command flow (check_generic_boot_standard_interface)

(0) send initial byte (master)

(1) boot mode check command byte (master)

(1-1) check read status (master)

(2) device inquiry command packet (master)

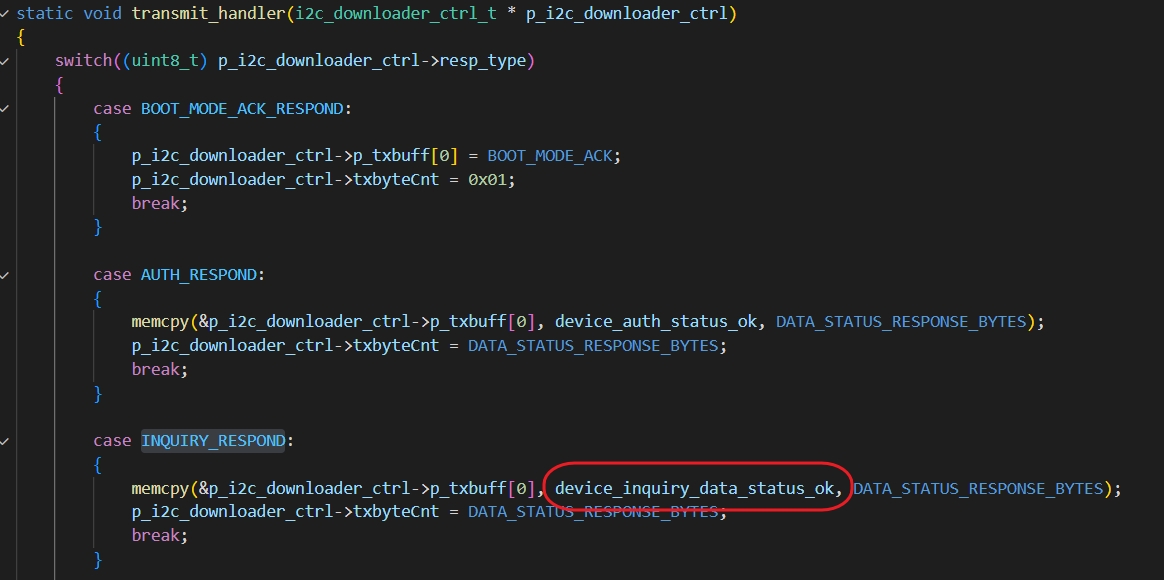

(2-1) report status about device inquiry command packet (slave)

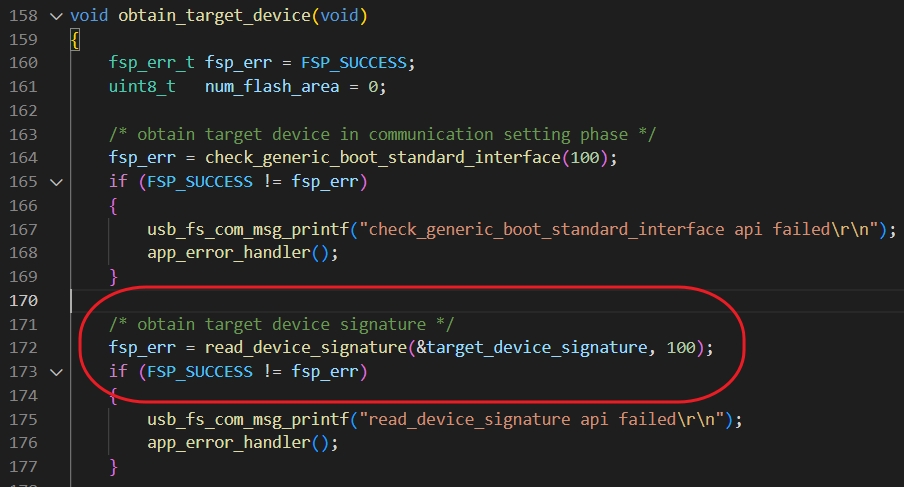

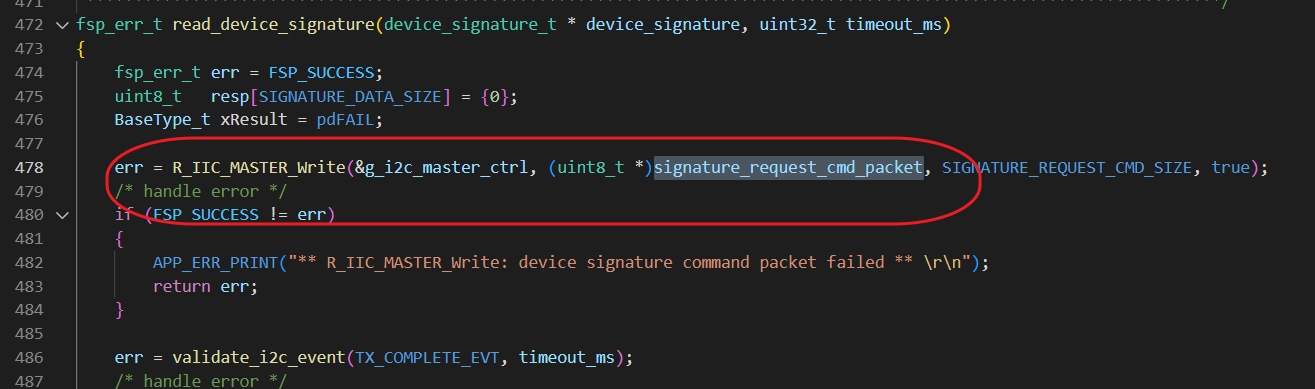

Project : boot code modifictaion - I2C command flow (read_device_signature)

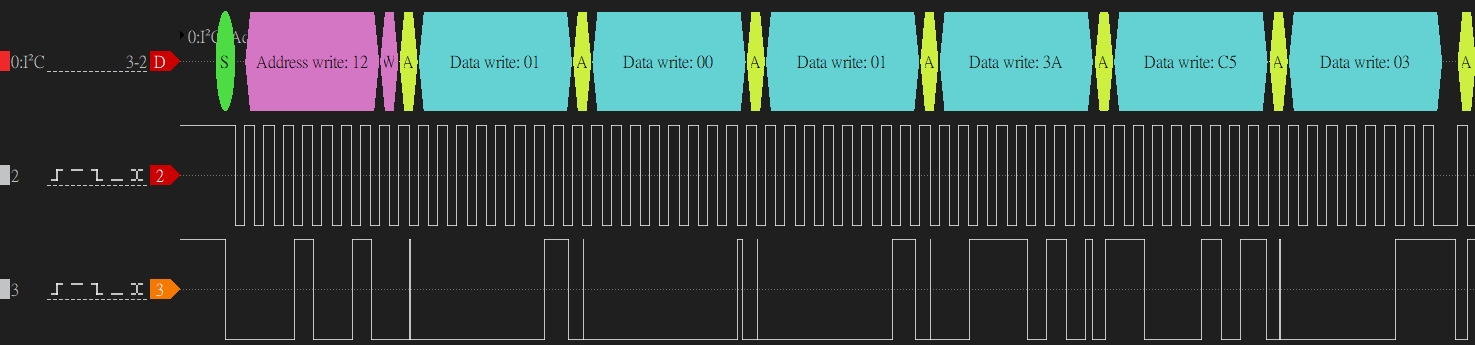

(3) obtain target device signature (master)

(3-1) report status about obtain target device signature (slave)

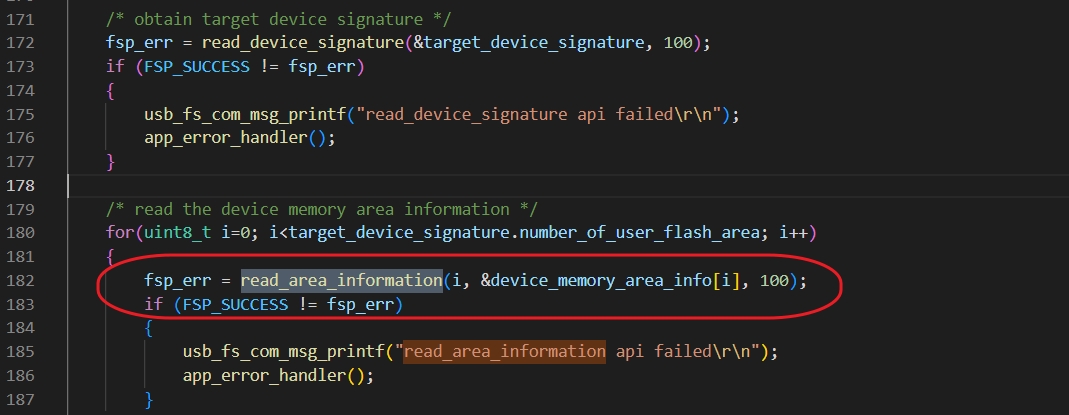

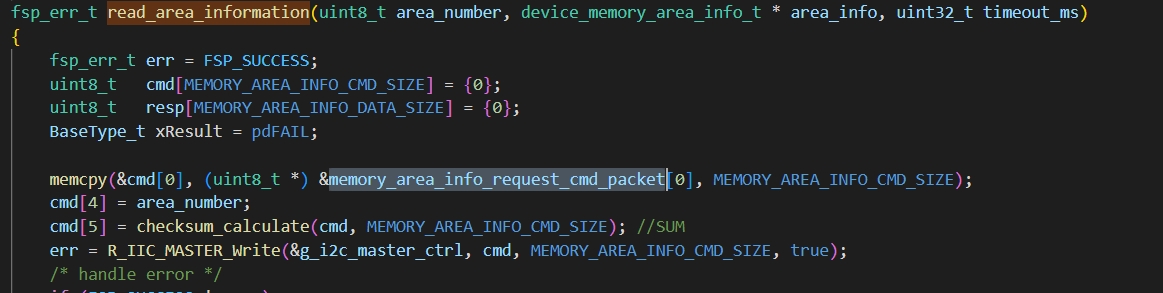

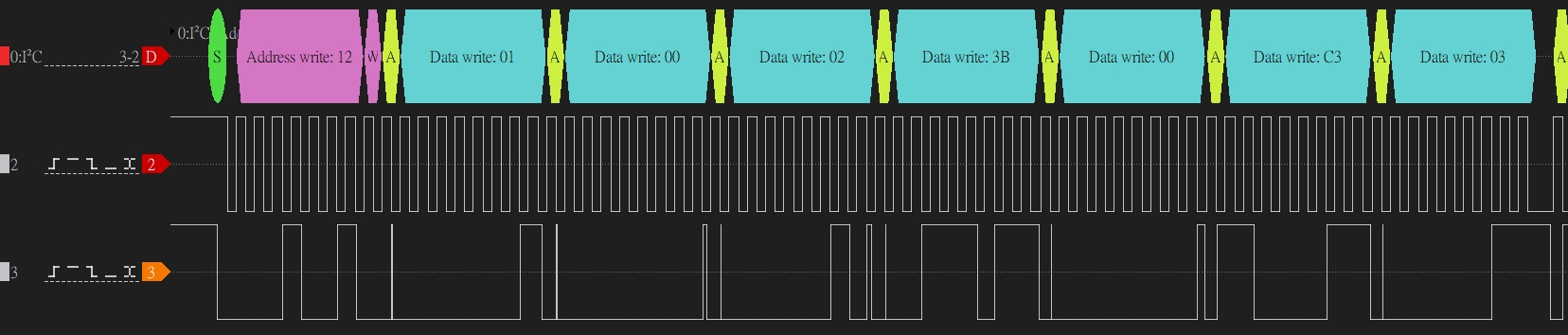

Project : boot code modifictaion - I2C command flow (read_area_information)

(4) obtain target device signature (master)

(4-1) report status about obtain target device signature (slave)

Project : boot code modifictaion - I2C command flow (start_device_image_transfer)

(5) erase user code flash area (master)

(5-1) report status about erase user code flash area (slave)

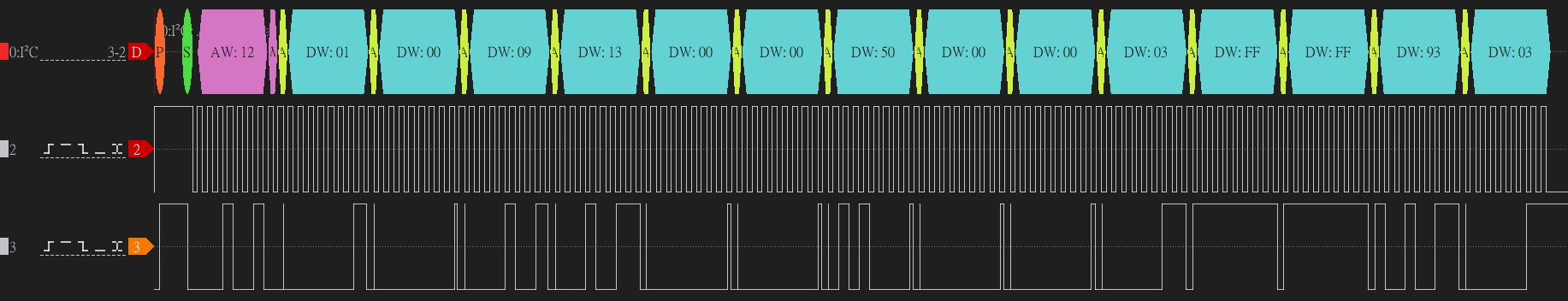

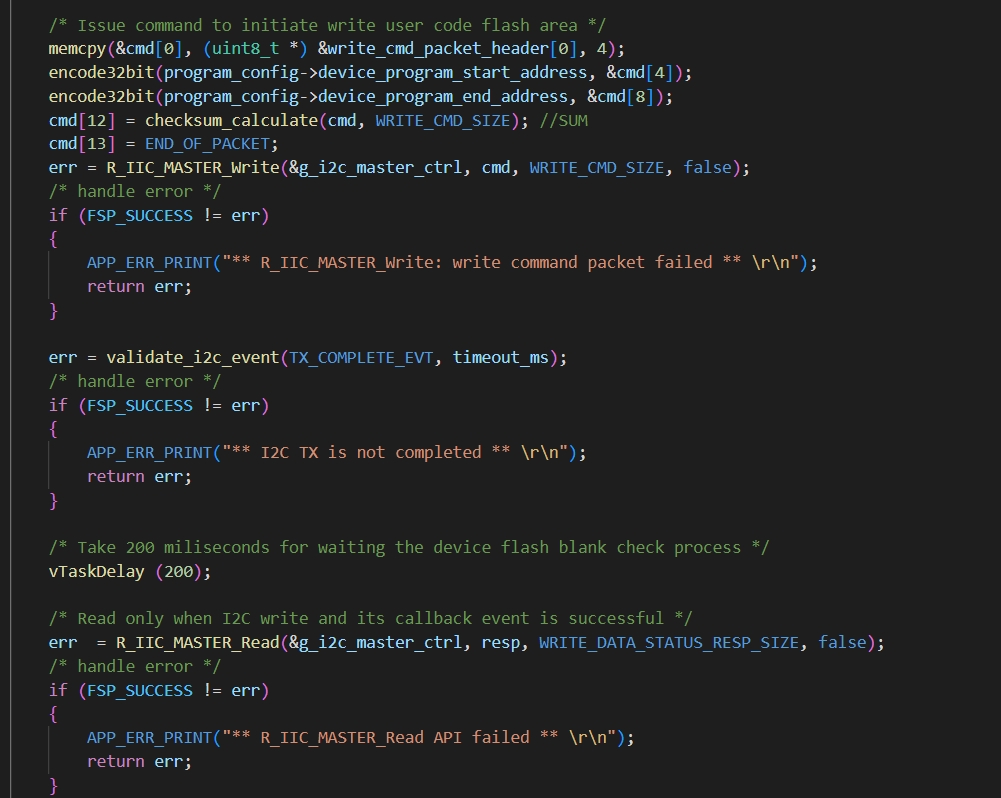

(6) initiate write user code flash area (master)

(6-1) report status about initiate write user code flash area (master)

Project : boot code modifictaion - I2C command flow terminal operation (master & slave)

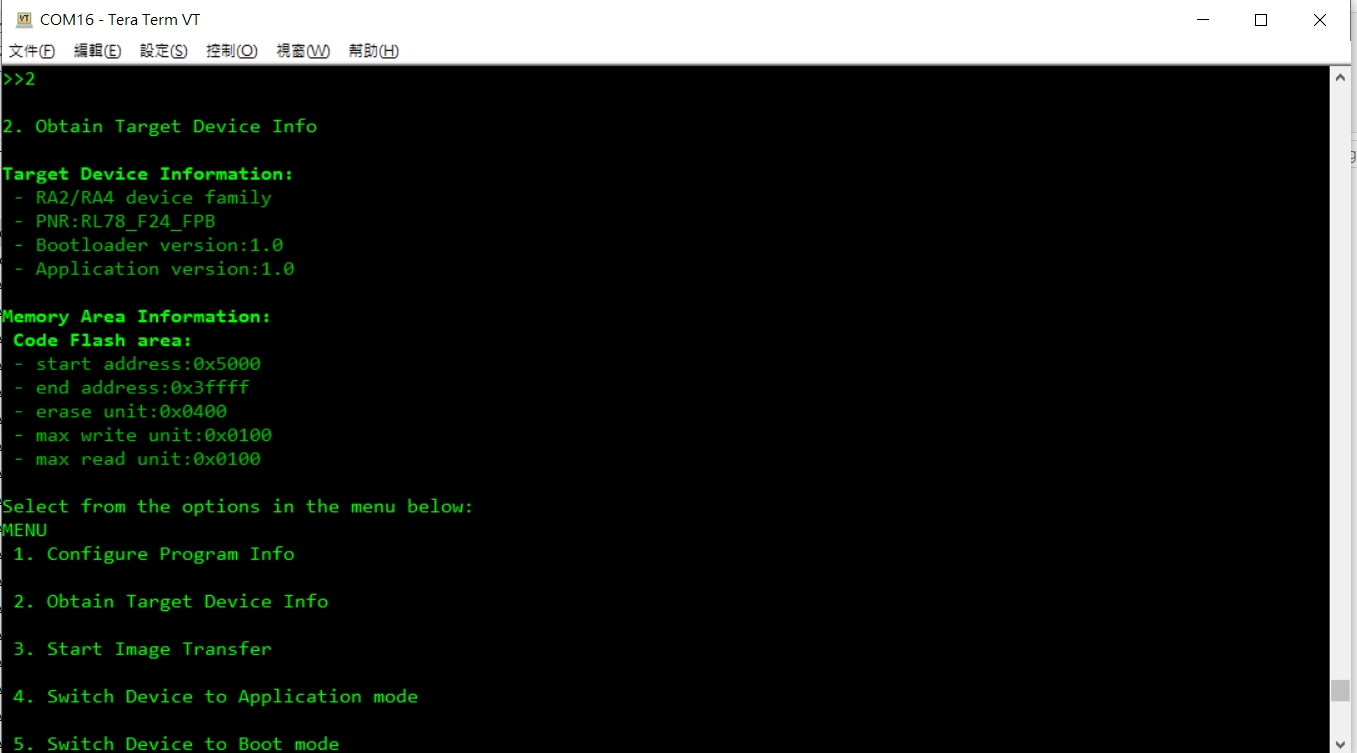

(1) log message at master : set target image

(2) log message at master : check slave status

(3) log message at master : program binary to slave code flash

(4) log message at slave : erase (RL78 F24)

(5) log message at slave : programming finish (RL78 F24)

(6) code flow at slave : WriteCodeFlash (RL78 F24)

erase per page (1K bytes) , program per 4 bytes

Project : boot code modifictaion - xmodem update flow

below is at xmodem update when g_app_required_update == 1

when trig update flow , will wait for xmodem from PC host

use teraterm , to send file under xmodem

when under transmit binary file

trasmit time , update RL78 F24 app code : 236K

with boot code enable log message (xmodem.c , check debug3) , spent 41 sec
without boot code enable log message (xmodem.c , check debug3) , spent 40 sec

when update app code finish

Project : boot code property modifictaion - E2 lite setting

CC-RL Compiler User's Manual
CS+ User’s Manual: CC-RL Build Tool Operation

Project : boot code property modifictaion - CC-RL Build Tool setting

Common Options

refer to How to Divide Boot and Flash Areas :
3.2.5 Specifying hex file output only to the boot area address range

[Frequently Used Options (for Hex Output)] > [Division output file]
- base on MCU (ex : RL78F24) , to set boot code start address and end address as file name
file size will be different if use other platform (ex : RL78 F13 , RL78 G16 , etc)
- map const define ?

%BuildModeName%\boot0000_4FFF.hex=0000-4FFF

RL78	const size
F24	0x5000
F23	0x3000
F13	0x2000
G15	0x800
G16	0x800

[Other] > [Commands executed after build processing]
- add : copy_fsy.bat
- copy boot code project fsy file to app code project root folder

copy /y/v .\DefaultBuild\RL78_F24_Boot_loader_UART.fsy ..\RL78_F24_Boot_loader_app\

How to Divide Boot and Flash Areas
CC-RL Compiler User's Manual
CS+ User’s Manual: CC-RL Build Tool Operation

Project : boot code property modifictaion - CC-RL Build Tool setting

Compile Options

How to Divide Boot and Flash Areas
CC-RL Compiler User's Manual
CS+ User’s Manual: CC-RL Build Tool Operation

Project : boot code property modifictaion - CC-RL Build Tool setting

Link Options

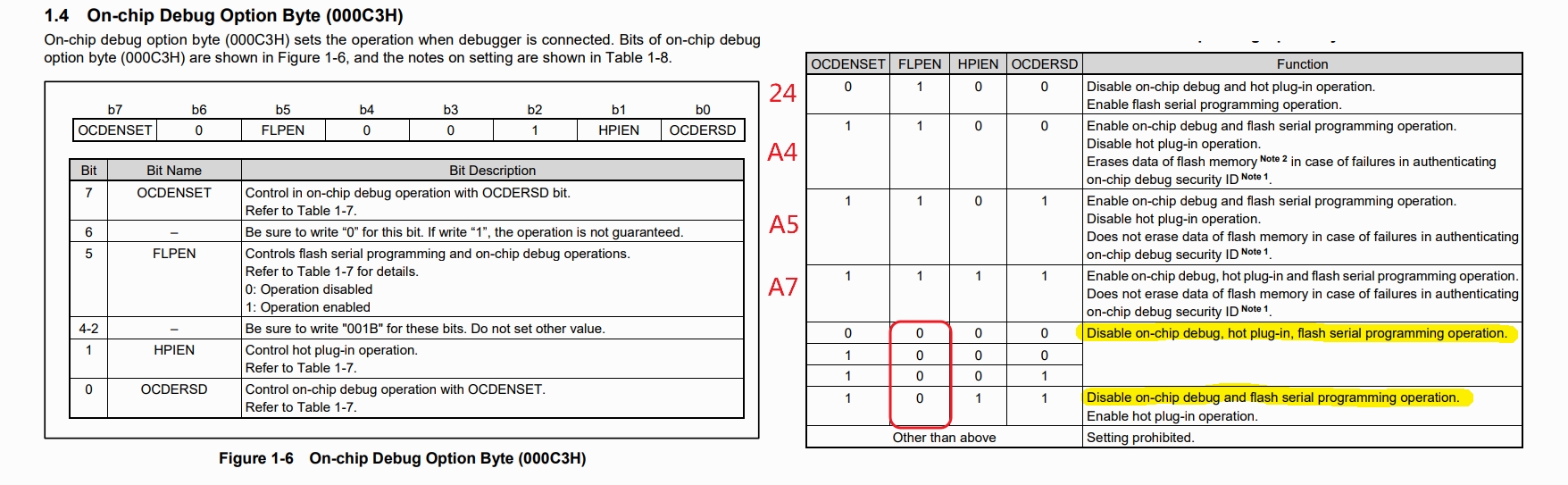

[Device] > [Option byte values for OCD]
- set to A5
- default will be 0xFF

[Output Code] > [Execute start address]
- will be called by cstart.asm

[Output Code] > [Address setting for specified area for vector table]
- use vect_address.xlsx under boot code project , to copy shift address
- entry editor and paste the shift address
- the final result :

[List] > [Ooutput link map file]
- select -SHow=ALL , will display the compile result (function , address) in map file for debug
- map file under /DefaultBuild
refer to document :
- How to Divide Boot and Flash Areas (R20UT3475EJ0300)
  - 3.2.2 Specifying the section allocation
- Renesas Flash Driver RL78 Type 02 User’s Manual (R20UT5009EJ0110)
  - 6.1.3.3 Section Item Settings

[Section] > [Section start address]
- set Layout sections automatically to NO
- entry editor and modify as below ( for code flash library )
- flash area
```
RFD_DATA_n
RFD_CMN_f
RFD_CF_f
SMP_CMN_f
SMP_CF_f
```
- ram area
```
RFD_DATA_nR
RFD_CMN_fR
RFD_CF_fR
SMP_CMN_fR
SMP_CF_fR
```
[Section] > [Section that outputs external symbols to the file]
- entry editor and modify as below :
```
.constf
.text
.textf
.bss
.sbss
.data
.sdata
.RLIB
.SLIB
```

reserve SRAM flag 0xFF700 area (ram flag) , to prevent initial when power on

[Section] > [ROM to RAM mapped section]

entry editor and modify as below :

.data=.dataR
.sdata=.sdataR
RFD_DATA_n=RFD_DATA_nR
RFD_CMN_f=RFD_CMN_fR
RFD_CF_f=RFD_CF_fR
SMP_CMN_f=SMP_CMN_fR
SMP_CF_f=SMP_CF_fR

set Layout sections automatically to YES
the final result :

how do we know section address meaning

flash assignment after debug area
- 0x000F0 (RL78 F24 , F23)

ram assignment
- 0xF9F00 (RL78 F24)
- 0xFCF00 (RL78 F23)

short direction address (.saddr) assignment
- 0xFFE20 (RL78 F24 , F23)

in case of need to modify from RL78 F24 to RL78 F23 (code flash , data flash , extra area)
- code flash
- data flash
- extra area
- RAM

[Others] > [Display total size sections]
- select -Total_size , will display the section size in output window
- display build code size in Output window

How to Divide Boot and Flash Areas
CC-RL Compiler User's Manual
CS+ User’s Manual: CC-RL Build Tool Operation
Renesas Flash Driver RL78 Type 02 User’s Manual

Project : boot code property modifictaion - CC-RL Build Tool setting

Hex Output Options

refer to How to Divide Boot and Flash Areas :
3.2.5 Specifying hex file output only to the boot area address range

[Output File] > [Division output file]
- base on MCU (ex : RL78F24) , to set boot code start address and end address as file name
file size will be different if use other platform (ex : RL78 F13 , RL78 G16 , etc)
- map const define ?

%BuildModeName%\boot0000_4FFF.hex=0000-4FFF

RL78	const size
F24	0x5000
F23	0x3000
F13	0x2000
G15	0x800
G16	0x800

[Hex Format]
- follow the setting of the picture

How to Divide Boot and Flash Areas
CC-RL Compiler User's Manual
CS+ User’s Manual: CC-RL Build Tool Operation
Renesas Flash Driver RL78 Type 02 User’s Manual

Reference - RL78/F23, F24 User’s Manual: Hardware - Input Source List

Project : RL78/F23, F24 User’s Manual: Hardware - Vector Table

Project : boot code/app code modifictaion - ftable.inc

create and register below file in Boot area (boot code) and Flash area (app code) project
ftable.inc

FLASH_TABLE       .EQU  0x5000
INTERRUPT_OFFSET  .EQU  0x100

the vaule will be boot code size (app code start address)
Due to mirror memory limitations, constant data cannot exist before mirror address - 0xF0000 (ex : 0xF5000 - 0xF0000 = 0x5000)
below is each RL78 platform minimum boot code code size definition , FLASH_TABLE MUST set bigger or equal to definition

RL78	const size
F24	0x5000
F23	0x3000
F13	0x2000
G15	0x800
G16	0x800

below is default project map file after compile

RL78 F24

RL78 F23

RL78 F13

RL78 G15

RL78 G16

How to Divide Boot and Flash Areas

Project : app code modifictaion - cstart.asm

refer to How to Divide Boot and Flash Areas :
4.1.1 Modifying the startup routine (cstart.asm)

use smart config generate code
copy cstart.asm to app code project root folder
register to Flash area (app code) project , then start to modify

(1)
comment out conditional check

(2)
add ram flag section

  .SECTION .boot_info, BSS
  .L_section_boot_info:

(3)
add data flash library section

  .SECTION RFD_DATA_nR, DATA

	; copy RFD external variables having initial value (near)
	MOV	ES,#HIGHW(STARTOF(RFD_DATA_n))
	MOVW	BC,#LOWW(SIZEOF(RFD_DATA_n))
	BR	$.L2_RFD_DATA
.L1_RFD_DATA:
	DECW	BC
	MOV	A,ES:LOWW(STARTOF(RFD_DATA_n))[BC]
	MOV	LOWW(STARTOF(RFD_DATA_nR))[BC],A
.L2_RFD_DATA:
	CLRW	AX
	CMPW	AX,BC
	BNZ	$.L1_RFD_DATA

app code : Compare below file to see the difference
after modification :
RL78_F24_Boot_loader_app\cstart.asm
https://github.com/released/RL78_F24_Boot_loader_app/blob/main/cstart.asm

data flash :
RL78_F24_Boot_loader_app\RFDRL78T02\sample\RL78_F24\DF\CCRL\source\cstart.asm

smart configurator original file :
RL78_F24_Boot_loader_app\src\smc_gen\r_bsp\mcu\all\cstart.asm

How to Divide Boot and Flash Areas

Project : app code modifictaion - ftable.asm

refer to How to Divide Boot and Flash Areas :
4.1.2 Creating a branch table program (ftable.asm)

create ftable and register interrupt (used in app code) in proper sequence
- vector table ?

example
- in app code , use UART0 TX/RX , UART1 TX/RX , TAU0_1 , IICA0 interrupt
- register these interrupt name with prefix !!_

		.DB4    0xffffffff                      ; INTP13/INTCL	             	;0x0014
		 BR     !!_r_Config_UART0_interrupt_send	; INTST0/INTCSI00/INTIIC00  ;0x0016
		 BR     !!_r_Config_UART0_interrupt_receive	; INTSR0/INTCSI01/INTIIC01 	;0x0018
		.DB4    0xffffffff						; INTTRD0                       ;0x001A
    ...
		.DB4    0xffffffff					    ; INTLIN0STA/INTLIN0	        ;0x0026
		 BR     !!_r_Config_IICA0_interrupt	    ; INTIICA0 		                ;0x0028
		.DB4    0xffffffff                      ; INTP8/INTRTC                  ;0x002A
		.DB4    0xffffffff      				; INTTM00                     	;0x002C
		 BR     !!_r_Config_TAU0_1_interrupt    ; INTTM01                       ;0x002E
		.DB4    0xffffffff                	    ; INTTM02                       ;0x0030
    ...
		.DB4    0xffffffff                      ; INTP10/INTTM03H               ;0x003C
		 BR     !!_r_Config_UART1_interrupt_send	; INTST1/INTCSI10/INTIIC10      ;0x003E
		 BR     !!_r_Config_UART1_interrupt_receive	; INTSR1/INTCSI11/INTIIC11      ;0x0040
		.DB4    0xffffffff					    ; INTTM04                       ;0x0042

How to Divide Boot and Flash Areas

Project : app code modifictaion - fsy file

refer to How to Divide Boot and Flash Areas :
4.2.1 Registering the externally defined symbol file with the project

when boot code build finish , will copy fsy file into app code project
- fsy file ?
register fsy file to Flash area (app code) project

How to Divide Boot and Flash Areas

Project : app code modifictaion - project tree

after modification , Flash area (app code) project will increse 4 files as below

Project : app code modifictaion - add DATA FLASH library

base on RL78 MCU , register correspond DATA FLASH library into Flash area (app code) project and exclude uncessary file (code flash , extra area)

Project : app code modifictaion - use smart config tool to generate driver

exclude the driver code (c code , asm code)

smart configurator system setting as below

Project : app code modifictaion - remove static and vect define

refer to How to Divide Boot and Flash Areas :
Do not specify the vector address (vect) with the #pragma interrupt directive in the flash area.

EVERY TIME when use smart config tool to re-generate driver
need to remove static declaration and comment on vect definition in earch drvier Config_xxx_user.c

How to Divide Boot and Flash Areas

Project : app code modifictaion - main.c

add ram flag declaration

#define RESET_TO_BOOT_SIGN 0xAA55AA55

#pragma address (reset_to_bootloader = 0x000FF700)
volatile uint32_t reset_to_bootloader;
#pragma address (_no_init_global = 0x000FF710)
unsigned char _no_init_global[RAM_FLAG_MAX];

below is map file result

add change flag data condition check and execute reset
- example : when receive change to boot mode command , modify the flag and reset MCU

    if(g_i2c_receive_complete)
    {
        if(0 == memcmp(&iic_buf[0], switch_device_to_boot_mode_cmd, 6))
        {
            R_Config_IICA0_Slave_Send((uint8_t *)response_status_ok, 7);
            while(!g_i2c_transmit_complete);

            reset_to_bootloader = RESET_TO_BOOT_SIGN;
            _reset_by_illegal_memory_access();
        }

        g_i2c_receive_complete = false;
    }

void uart_rcv_process(void)
{
    if (FLAG_PROJ_TRIG_3)
    {
        FLAG_PROJ_TRIG_3 = 0;

        reset_to_bootloader = RESET_TO_BOOT_SIGN;
        printf_tiny("(app)reset_to_bootloader:0x%X",reset_to_bootloader>>16);
        printf_tiny("%X\r\n",reset_to_bootloader&0xFFFF);

        _reset_by_illegal_memory_access();
    }
}

Project : app code property modifictaion - E2 lite setting

CC-RL Compiler User's Manual
CS+ User’s Manual: CC-RL Build Tool Operation

Project : app code property modifictaion - CC-RL Build Tool setting

Common Options

refer to How to Divide Boot and Flash Areas :
4.2.3 Specifying hex file output only to the flash area address range

[Frequently Used Options (for Hex Output)] > [Division output file]
- base on MCU (ex : RL78F24 , 256K flash) , to app code start address and end address as file name
file size will be different if use other platform (ex : RL78 F13 , RL78 G16 , etc)
- map const define ?

%BuildModeName%\flash5000_3FFFF.hex=5000-3FFFF

[Other] > [Commands executed after build processing]
- add : boot_flash.bat , for RL78 F24 (256K)
- use srecord tool , do action as below
  - save app code hex to back hex file
    - 1backupHex.cmd
  - base on app code hex , generate CRC
    - 2generateChecksum.cmd
  - base on app code hex (w/ CRC) , generate CRC into hex
    - 3generateCRCHex.cmd
  - covert app code hex (w/ CRC) to app code bin
    - 4generateCRCBin.cmd
  - base on app code hex (w/ CRC) , to over lap original hex
    - 5generateCRCHexOverlap.cmd
  - combine boot code and app code
    - 6generateBootAppHex.cmd
  - covert boot/app code hex (w/ CRC) to boot/app code bin
    - 7generateBootAppBin.cmd

1backupHex.cmd

# input file
.\DefaultBuild\flash5000_3FFFF.hex -Intel

-crop 0x005000 0x40000

# produce the output file
-Output
.\DefaultBuild\flash5000_3FFFF_backup.hex -Intel

2generateChecksum.cmd

# input file
.\DefaultBuild\flash5000_3FFFF.hex -Intel

-crop 0x5000 0x3FFFC

-crc32-l-e 0x3FFFC

-crop 0x3FFFC 0x40000

-Output
-
-HEX_Dump

3generateCRCHex.cmd

# input file
.\DefaultBuild\flash5000_3FFFF.hex -Intel

-crop 0x5000 0x3FFFC

-crc32-l-e 0x3FFFC

-Output
.\DefaultBuild\flash5000_3FFFF_CRC.hex -Intel

4generateCRCBin.cmd

# input file
.\DefaultBuild\flash5000_3FFFF_CRC.hex -Intel

-crop 0x005000 0x40000 -offset -0x005000

# produce the output file
-Output
.\DefaultBuild\flash5000_3FFFF.bin -binary

5generateCRCHexOverlap.cmd

# input file
.\DefaultBuild\flash5000_3FFFF_CRC.hex -Intel

-crop 0x005000 0x40000

# produce the output file
-Output
.\DefaultBuild\flash5000_3FFFF.hex -intel

6generateBootAppHex.cmd

..\RL78_F24_Boot_loader_UART\DefaultBuild\boot0000_4FFF.hex -Intel .\DefaultBuild\flash5000_3FFFF.hex -Intel -o .\boot_app.hex -Intel -Output_Block_Size=16

7generateBootAppBin.cmd

# input file
.\boot_app.hex -Intel

-crop 0x00000 0x40000

# produce the output file
-Output
.\boot_app.bin -binary

use RFP to download whole program : boot_app.bin(boot code + app code)

boot+app binary folder :
RL78_F24_Boot_loader_app\boot_app.bin

boot code binary folder :
RL78_F24_Boot_loader_UART\DefaultBuild\boot0000_4FFF.hex

app code binary folder :
RL78_F24_Boot_loader_app\DefaultBuild\flash5000_3FFFF.bin
RL78_F24_Boot_loader_app\DefaultBuild\flash5000_3FFFF.hex

Project : app code property modifictaion - CC-RL Build Tool setting

Compile Options

How to Divide Boot and Flash Areas
CC-RL Compiler User's Manual
CS+ User’s Manual: CC-RL Build Tool Operation

Project : app code property modifictaion - CC-RL Build Tool setting

Link Options

[Device] > [Option byte values for OCD]
- set to A5
- default will be 0xFF

[Output Code] > [Execute start address]
- will be called by cstart.asm

[List] > [Ooutput link map file]
- select -SHow=ALL , will display the compile result (function , address) in map file for debug
- map file under /DefaultBuild
refer to document :
- How to Divide Boot and Flash Areas (R20UT3475EJ0300)
  - 3.2.2 Specifying the section allocation
- Renesas Flash Driver RL78 Type 02 User’s Manual (R20UT5009EJ0110)
  - 6.1.3.3 Section Item Settings

[Section] > [Section start address]

refer to How to Divide Boot and Flash Areas :
4.2.2 Specifying the section allocation

set Layout sections automatically to NO
app code will start from 0x5000 (RL78 F24) , and reserved branch table area (0x5200)
entry editor and modify as below ( for data flash library )
flash area

RFD_DATA_n
RFD_CMN_f
RFD_DF_f
SMP_CMN_f
SMP_DF_f

ram area

RFD_DATA_nR

reserve SRAM flag 0xFF700 area (ram flag) , to prevent initial when power on
[Section] > [ROM to RAM mapped section]
- entry editor and modify as below :

.data=.dataR
.sdata=.sdataR
RFD_DATA_n=RFD_DATA_nR

set Layout sections automatically to YES
the final result :

[Others] > [Display total size sections]
- select -Total_size , will display the section size in output window
- display build code size in Output window

How to Divide Boot and Flash Areas
CC-RL Compiler User's Manual
CS+ User’s Manual: CC-RL Build Tool Operation
Renesas Flash Driver RL78 Type 02 User’s Manual

Project : app code property modifictaion - CC-RL Build Tool setting

Hex Output Options

refer to How to Divide Boot and Flash Areas :
4.2.3 Specifying hex file output only to the flash area address range

[Output File] > [Division output file]
- base on MCU (ex : RL78F24) , to set app code start address and end address as file name
file size will be different if use other platform (ex : RL78 F13 , RL78 G16 , etc)
- map const define ?

%BuildModeName%\flash5000_3FFFF.hex=5000-3FFFF

[Hex Format]
- follow the setting of the picture

How to Divide Boot and Flash Areas
CC-RL Compiler User's Manual
CS+ User’s Manual: CC-RL Build Tool Operation
Renesas Flash Driver RL78 Type 02 User’s Manual

How to add interrupt at boot code

I2C example
refer to define : ENALBE_IICA0_BL_USE_IRQ in project:RL78_F24_Boot_loader_UART_CRC

add interrupt vect declare in boot code

use smart config generate driver code and move to boot_main.c
use [#pragma interrupt] to declare custom interrupt
vect refer to vector table
use ram flag (ex:_no_init_global[RAM_FLAG_INDICATE_BOOT_APP]) to define excute which irq when in boot code / app code
- declare ram_flag = 0xAA when in boot code
- declare ram_flag = 0x55 when in app code
add boot code interrupt process (ex:I2C_Downloader_routine_IRQ)
interrupt process in app code wll be defined as vector number

#pragma interrupt boot_r_Config_IICA0_interrupt(vect=INTIICA0)
void __near boot_r_Config_IICA0_interrupt(void)
{
	if(_no_init_global[RAM_FLAG_INDICATE_BOOT_APP] == 0xAA)   // execute boot code ISR
	{
        if (0U == (IICS0 & _80_IICA_STATUS_MASTER))
        {
            I2C_Downloader_routine_IRQ();   // r_Config_IICA0_slave_handler();
        }
	}
	if(_no_init_global[RAM_FLAG_INDICATE_BOOT_APP] == 0x55)   //user app ISR address
	{
        if (0U == (IICS0 & _80_IICA_STATUS_MASTER))
        {
            ((void(*)(void))0x5050)();
        }
	}
}

TIMER example
refer to define : ENALBE_TIMER_TAU0_1_IRQ in project:RL78_F24_Boot_loader_UART_CRC

add interrupt vect declare in boot code

use smart config generate driver code and move to boot_main.c
use [#pragma interrupt] to declare custom interrupt
vect refer to vector table
use ram flag (ex:_no_init_global[RAM_FLAG_INDICATE_BOOT_APP]) to define excute which irq when in boot code / app code
- declare ram_flag = 0xAA when in boot code
- declare ram_flag = 0x55 when in app code
add boot code interrupt process (ex:boot_Timer_1ms_IRQ)
interrupt process in app code wll be defined as vector number

#pragma interrupt boot_r_Config_TAU0_1_interrupt(vect=INTTM01)
void __near boot_r_Config_TAU0_1_interrupt(void)
{
	if(_no_init_global[RAM_FLAG_INDICATE_BOOT_APP] == 0xAA)   // execute boot code ISR
	{
        boot_Timer_1ms_IRQ();
	}
	if(_no_init_global[RAM_FLAG_INDICATE_BOOT_APP] == 0x55)   //user app ISR address
	{
        ((void(*)(void))0x505C)();
	}
}
