RH850 UART0 DMA TX / RX (interrupt + idle timer)

Reference Project

This training material is based on the below reference project:

Sample_Project_RH850_S1_UART_TX_DMA_RX_interrupt

Agenda

System overview
DMA access: PEG & register update
Memory map
SRAM allocation (DMA buffer)

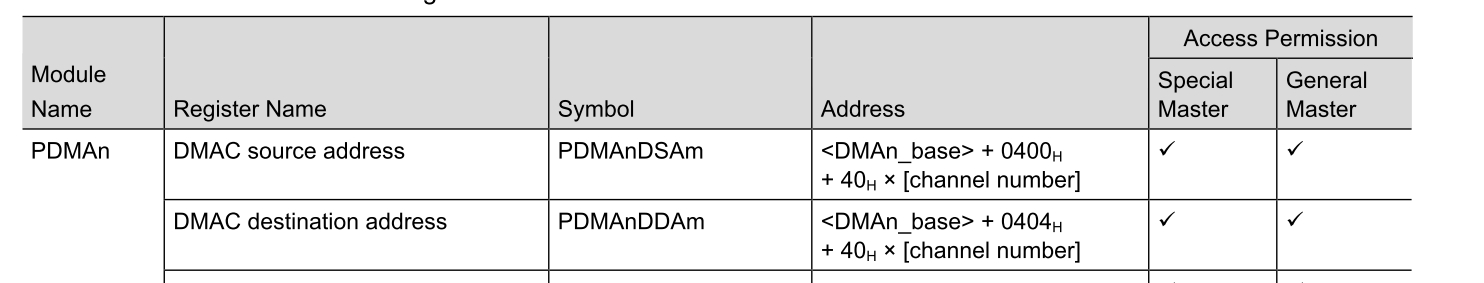

DMA address / register map
UART address / register map
Smart Config settings
Code flow: TX DMA / RX interrupt
RX idle detection timer
Debug watch window

1. System overview

Base board & MCU

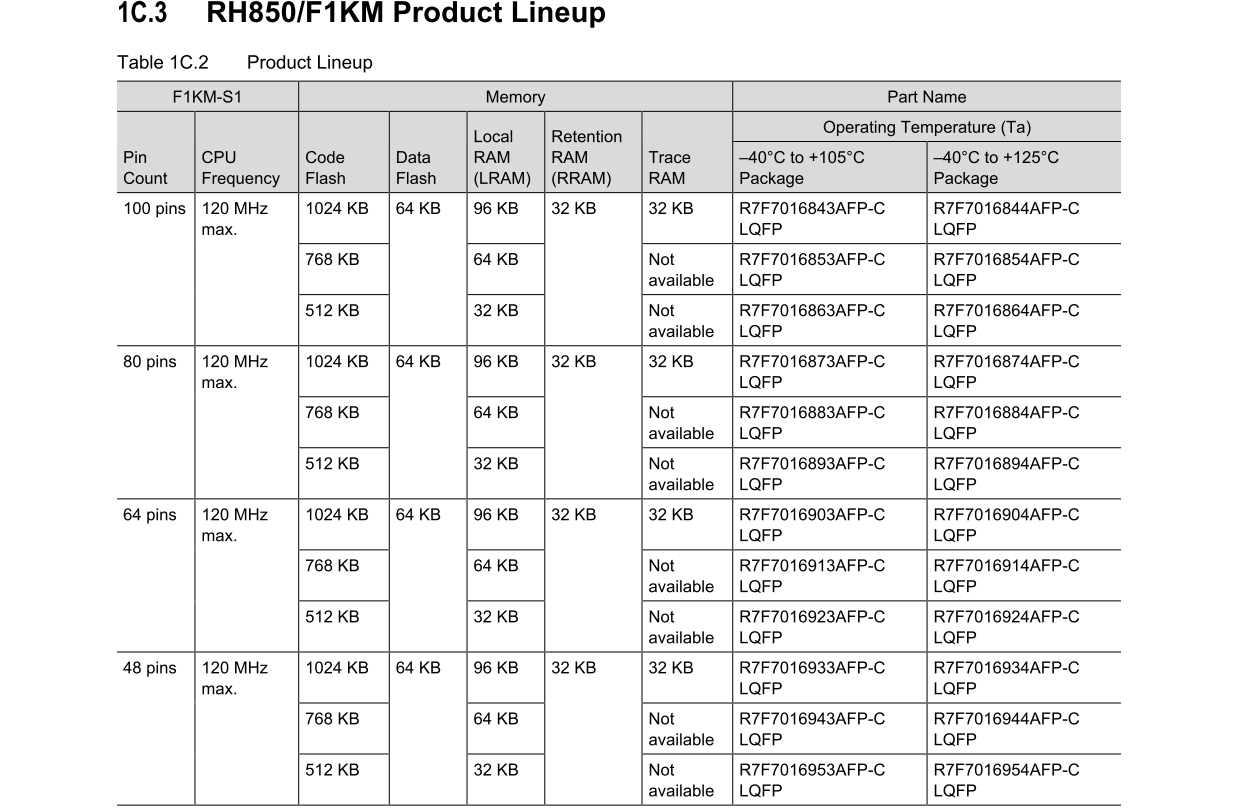

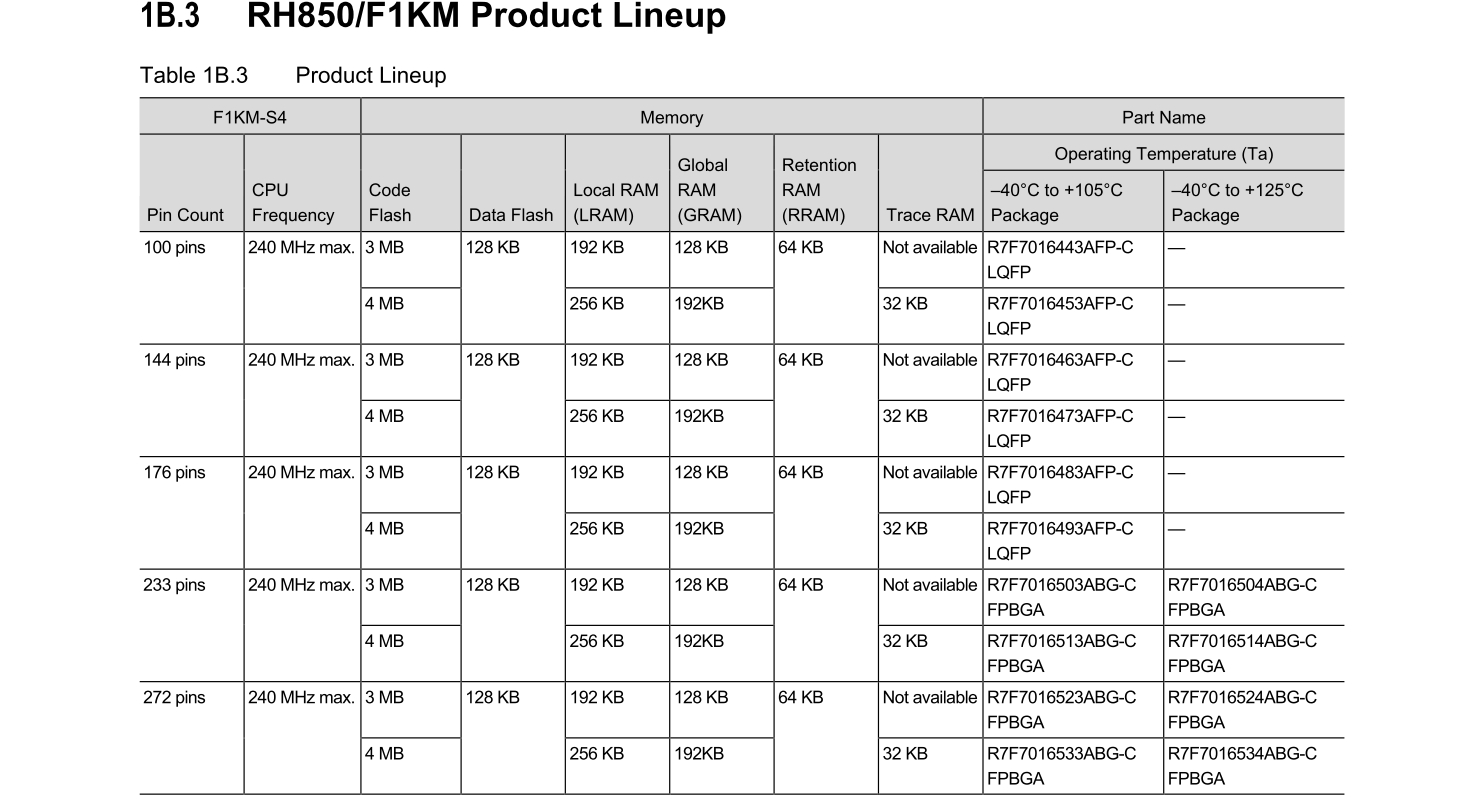

EVM : Y-BLDC-SK-RH850F1KM-S1-V2 (R7F701684/LQFP100/1MB flash)
project MCU change to R7F7016923 (LQFP64/512K flash)

Peripherals

TAUJ0_0 : timer interval for 1ms interrupt
UART1 : RLIN31 (TX > P10_12 , RX > P10_11) , for printf and receive from keyboard
TAUJ1_0 : timer interval for UART1 RX idle byte detection
- baud rate 115200 : 217us
- baud rate 415000 : 60.24us

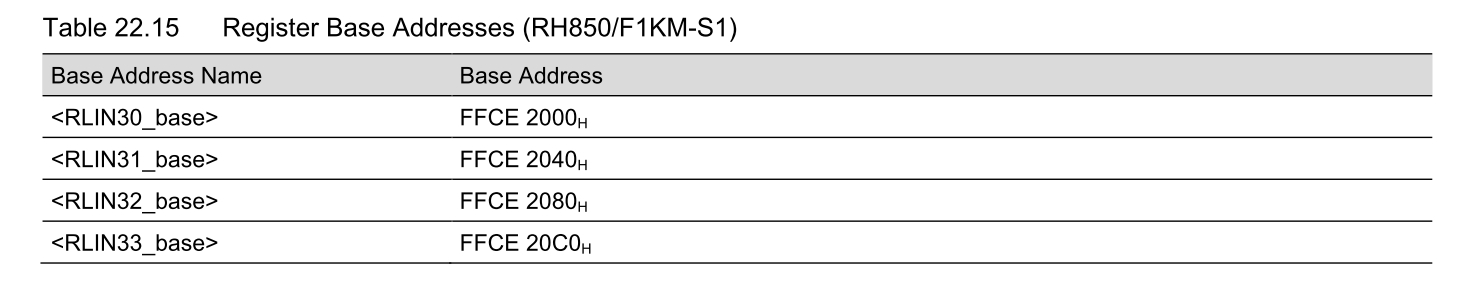

UART0 : RLIN30 (TX > P10_10 , RX > P10_09)
- UART0 TX : DMA
- UART0 RX : regular interrupt , with timer IRQ for idle detection

2. DMA access: PEG & register update

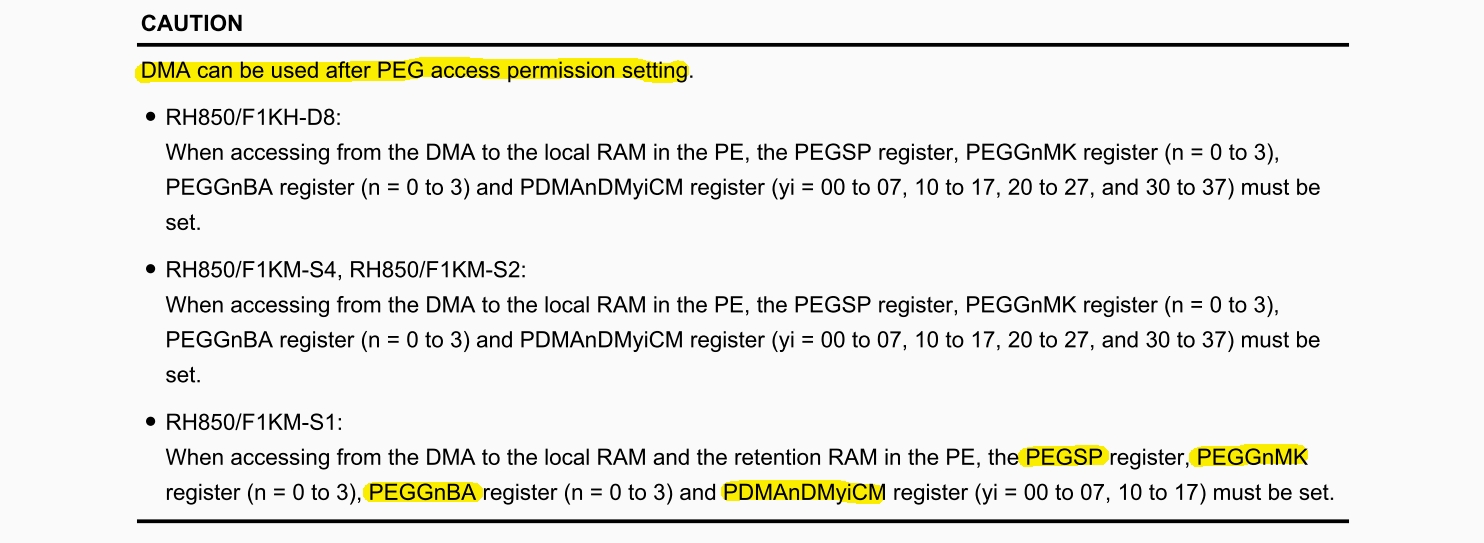

Before using DMA to access SRAM, PEG registers must be configured.

set PEG.SP (SPEN = 1)

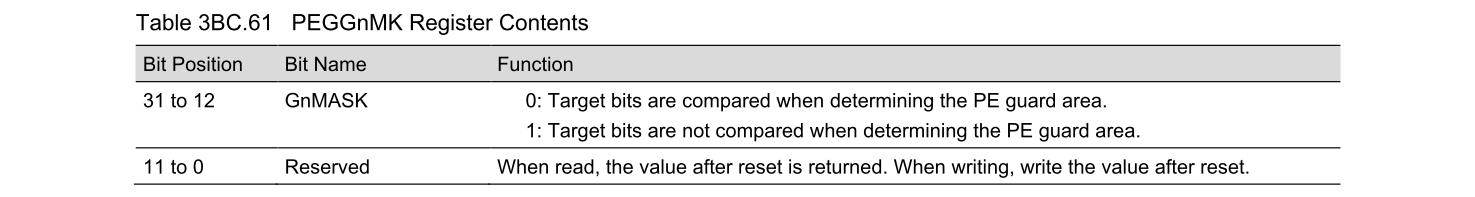

set PEG.GnMK
set PEG.GnBA
set PDMAnDMyiCM

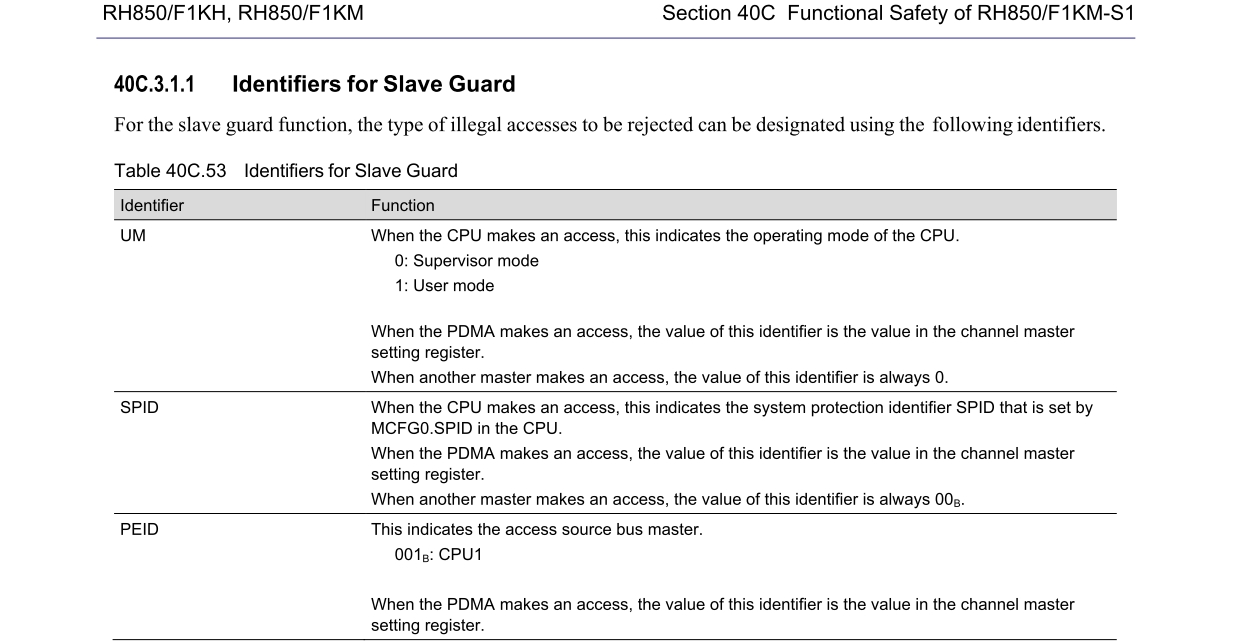

set PDMA0.DM00CM / DM01CM (SPID / PE / supervisor)

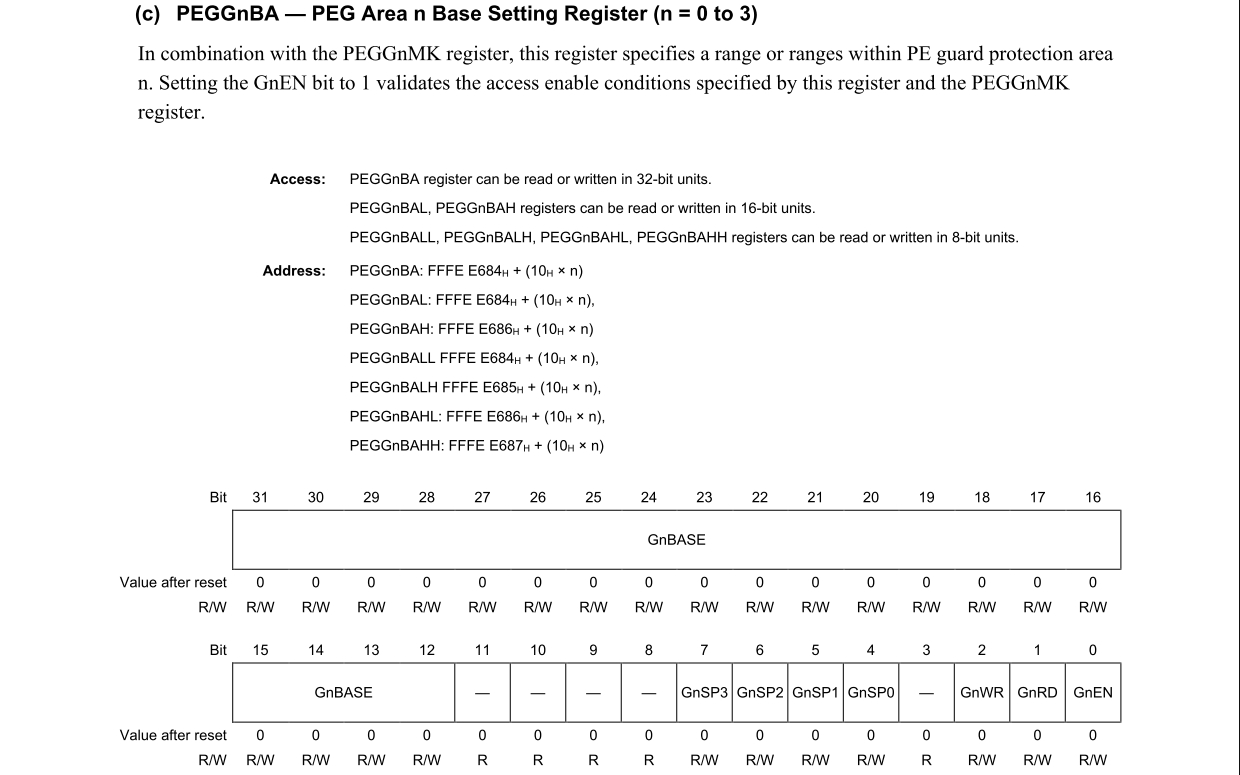

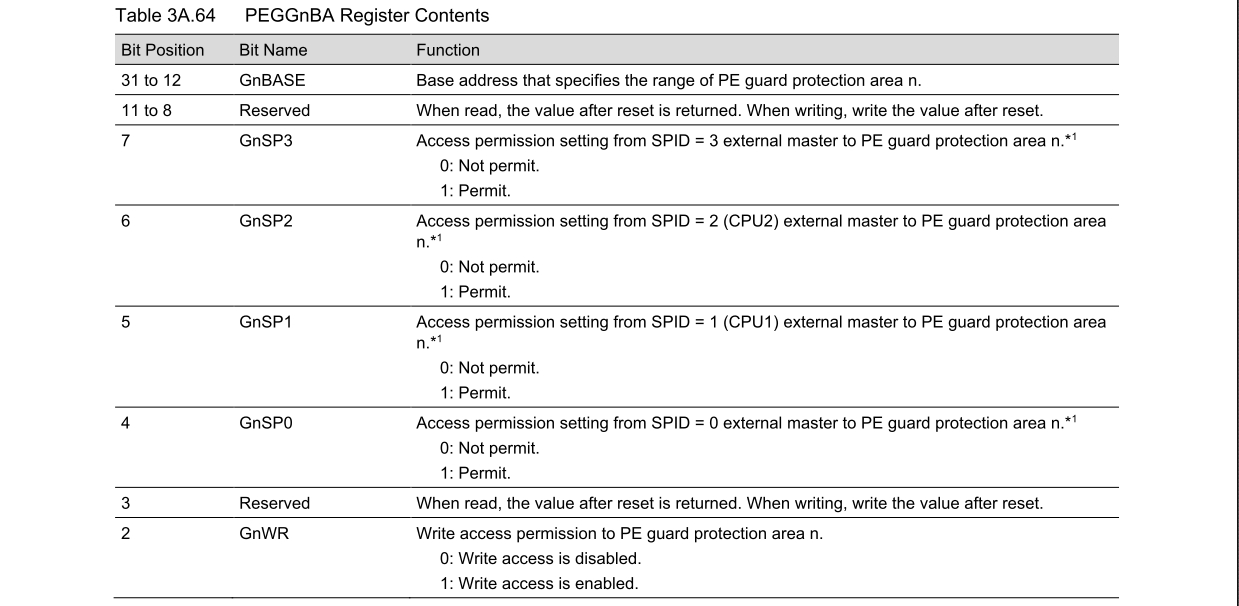

PEG register references

Example code

PDMA0.DM00CM = _DMAC_PE1_SETTING | _DMAC_SPID0_SETTING | _DMAC_SUPERVISON_MODE;
PDMA0.DM01CM = _DMAC_PE1_SETTING | _DMAC_SPID0_SETTING | _DMAC_SUPERVISON_MODE;
PEG.SP.UINT32 = 0x00000001U;                /* SPEN = 1, permit access */
PEG.G0MK.UINT32 = 0xFFFFF000U;              /* 32KB window mask */
PEG.G0BA.UINT32 = ADDR_LOCAL_RAM_CPU1 |     /* Base address of PE Guard protection Area (start of Local RAM) */
                (0x1U<<7U) |                /* Enable Access for SPID 3 */
                (0x1U<<6U) |                /* Enable Access for SPID 2 */
                (0x1U<<5U) |                /* Enable Access for SPID 1 */
                (0x1U<<4U) |                /* Enable Access for SPID 0 */
                (0x1U<<2U) |                /* Write access is enabled */
                (0x1U<<1U) |                /* Read access is enabled */
                (0x1U<<0U);                 /* Settings for access enable conditions are enabled */

/* LOCAL_RAM_CPU1 start address (PEG) */
#define ADDR_LOCAL_RAM_CPU1         (0xFEBF0000)

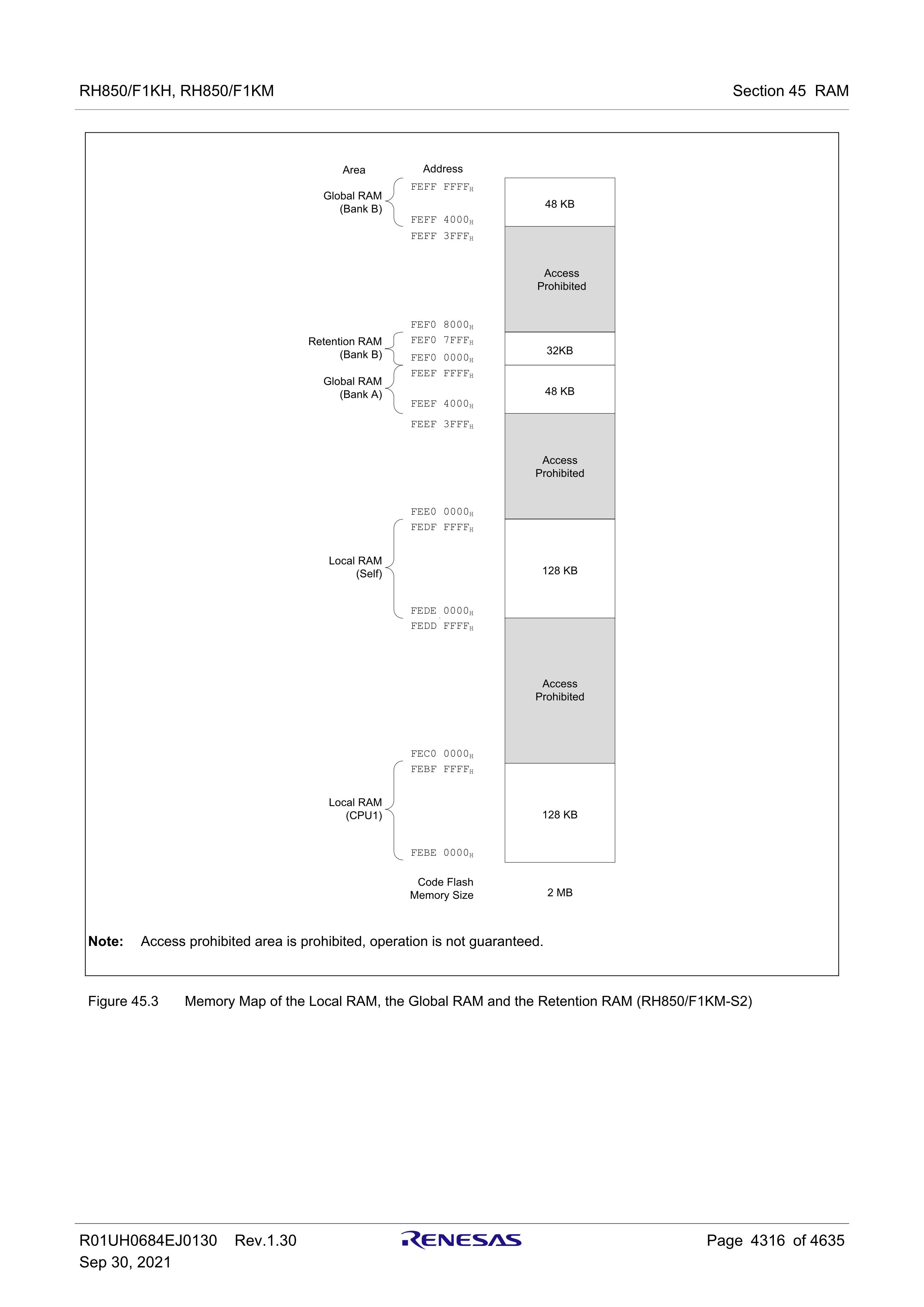

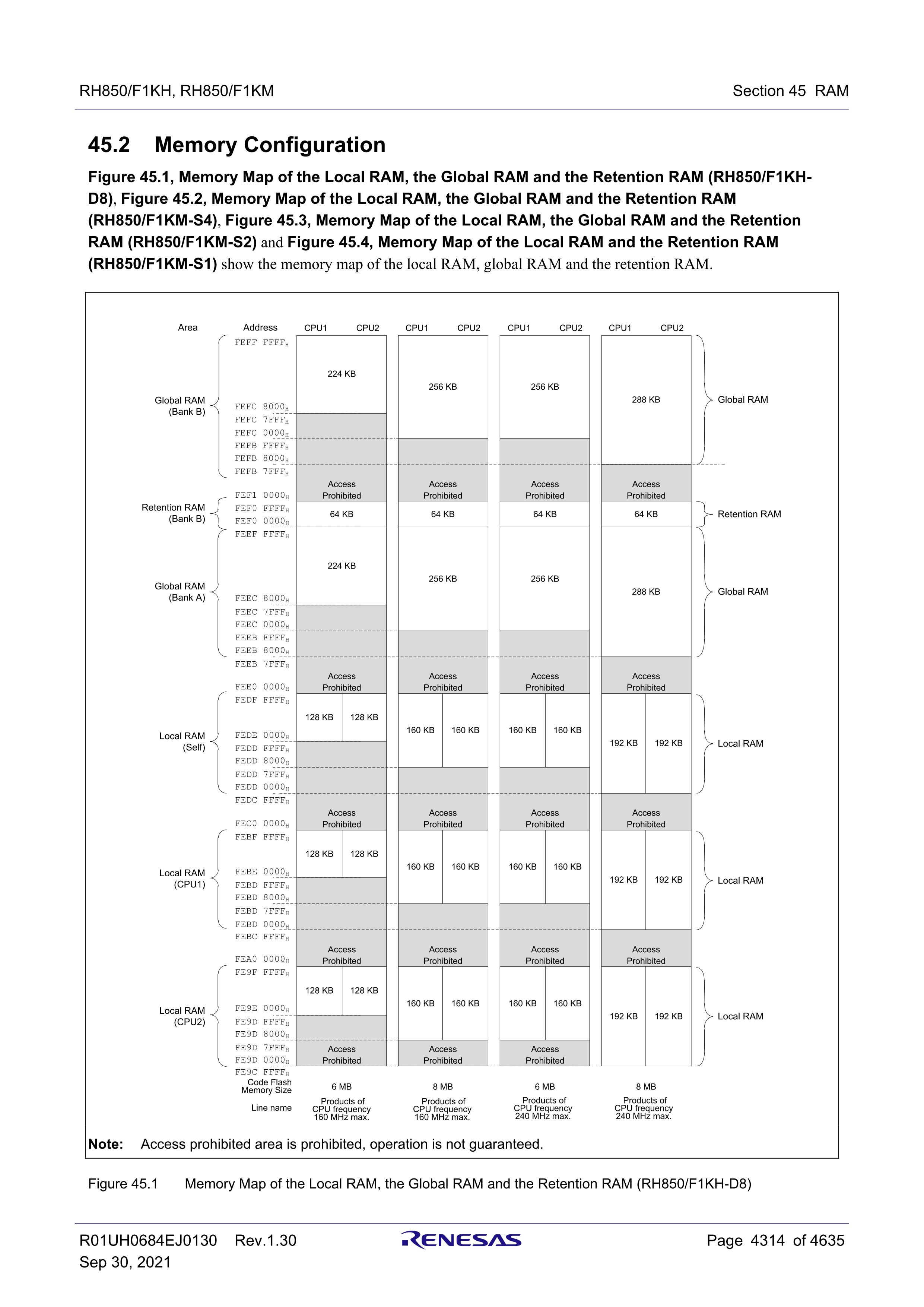

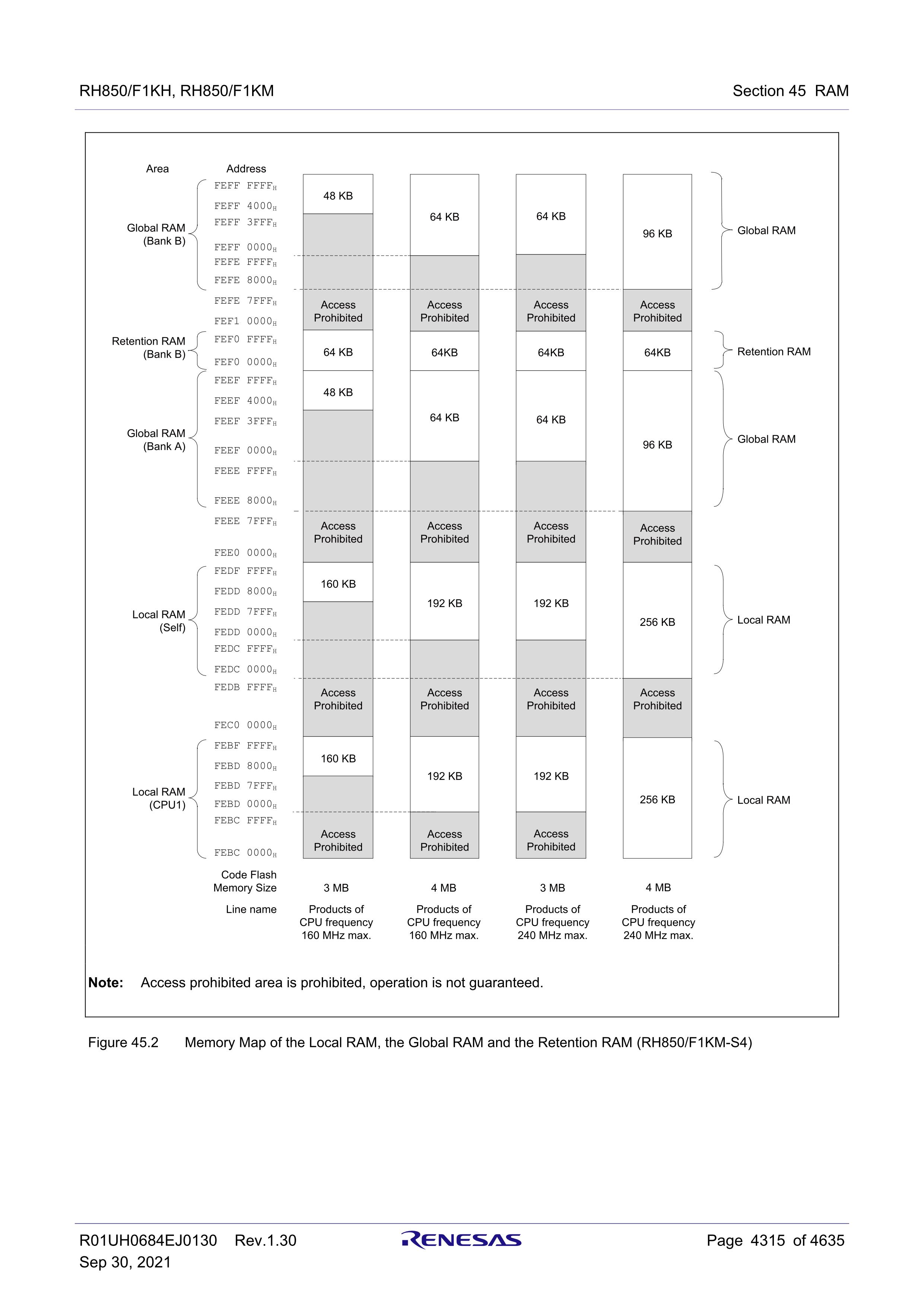

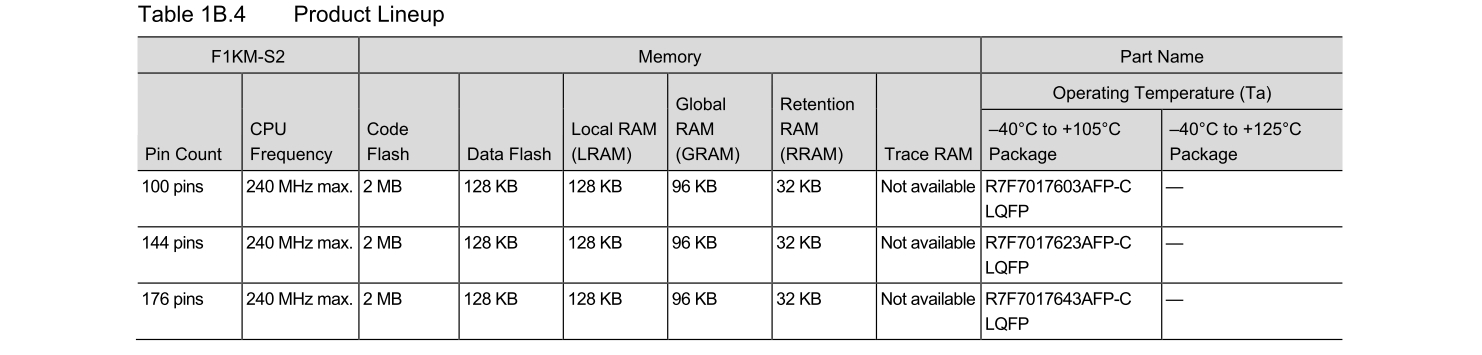

3. Memory map (RH850/F1KM-S1)

FLASH	LOCAL RAM(CPU1)	RETENTION RAM(CPU1)	LOCAL RAM(SELF)	RETENTION RAM(SELF)
512K	`0xFEBF0000 ~ 0xFEBF7FFF`	`0xFEBF8000 ~ 0xFEBFFFFF`	`0xFEDF0000 ~ 0xFEDF7FFF`	`0xFEDF8000 ~ 0xFEDFFFFF`
768K	`0xFEBE8000 ~ 0xFEBF7FFF`	`0xFEBF8000 ~ 0xFEBFFFFF`	`0xFEDE8000 ~ 0xFEDF7FFF`	`0xFEDF8000 ~ 0xFEDFFFFF`
1MB	`0xFEBE0000 ~ 0xFEBF7FFF`	`0xFEBF8000 ~ 0xFEBFFFFF`	`0xFEDE0000 ~ 0xFEDF7FFF`	`0xFEDF8000 ~ 0xFEDFFFFF`

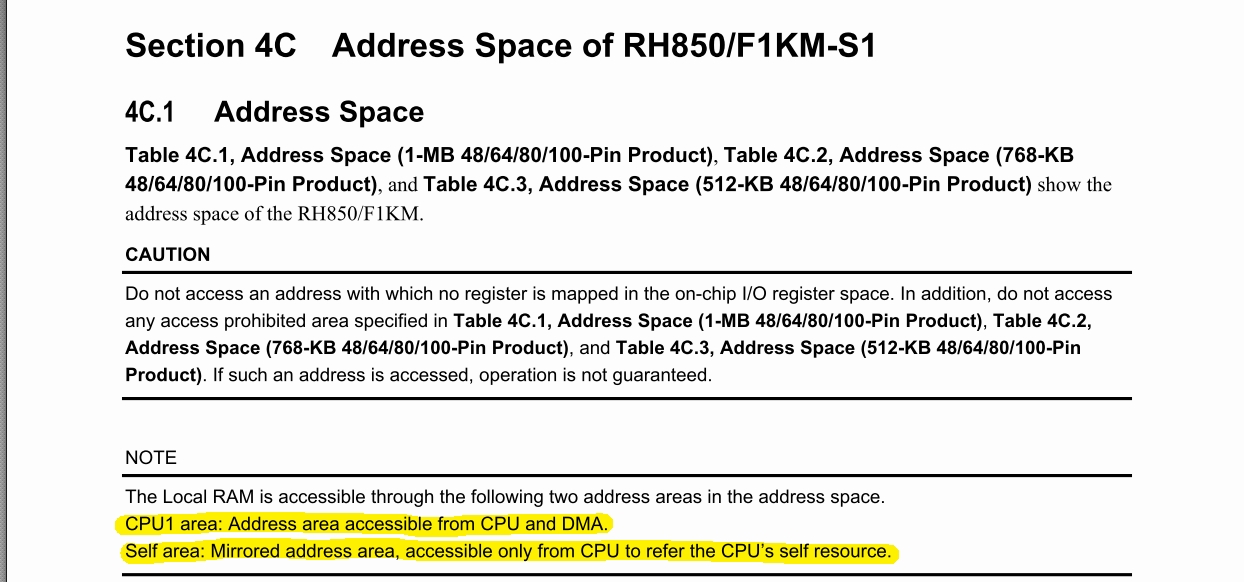

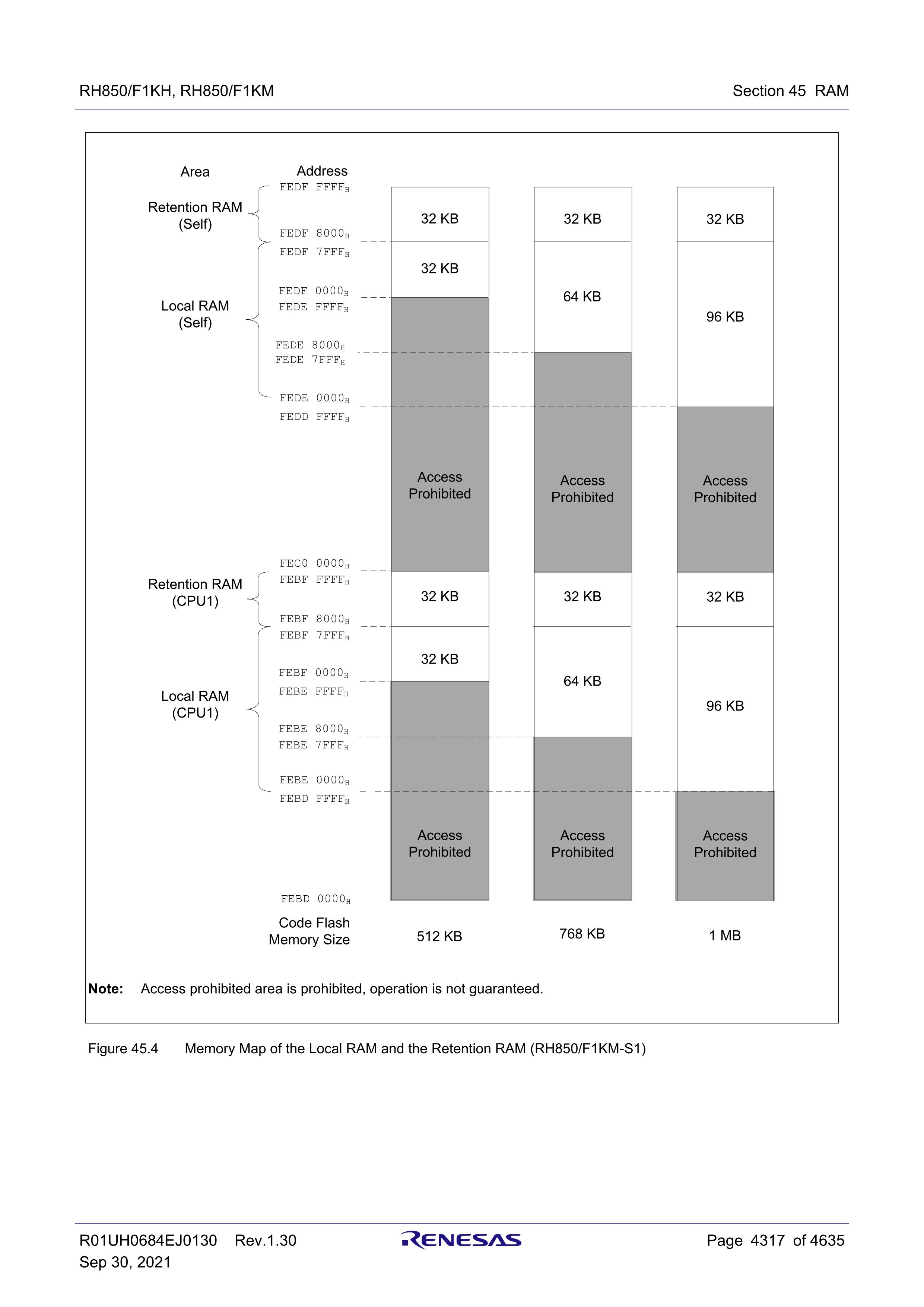

CPU1 area vs Self area

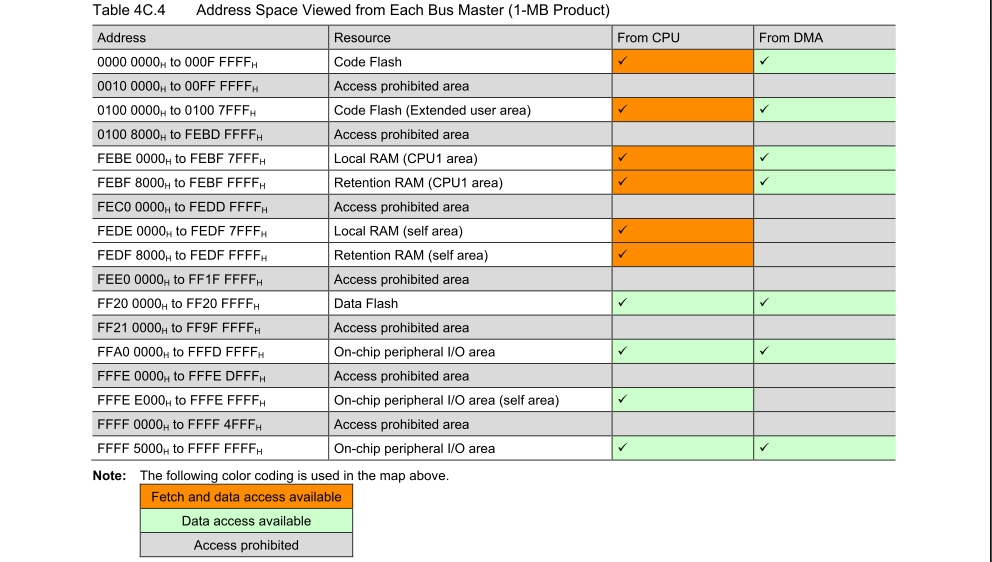

DMA access area (only allow access CPU1 area)

4. SRAM allocation (DMA buffer)

Need to allocate SRAM section for DMA buffer.

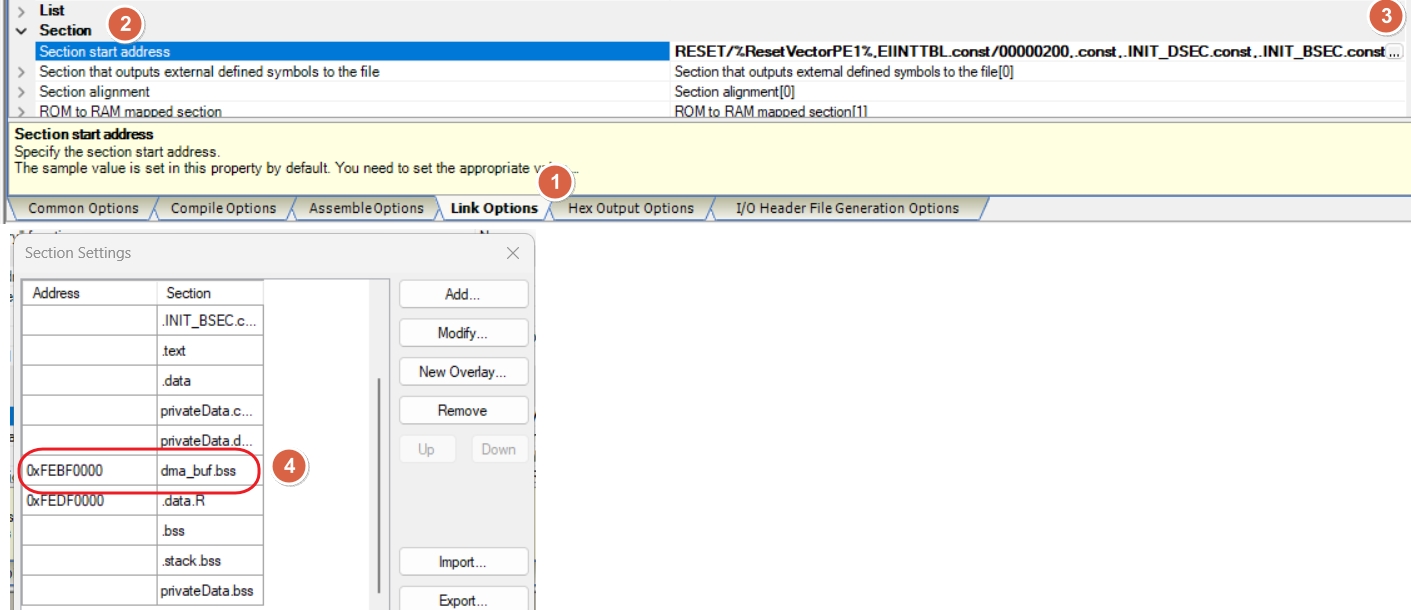

Example (FLASH 512K) : dma_buf at 0xFEBF0000

Define TX / RX DMA buffers in dma_buf section:

#pragma section dma_buf
volatile uint8_t s_uart0_dma_rx_ring[APP_UART0_DMA_RX_RING_SIZE];
volatile uint8_t s_uart0_dma_tx_buf[APP_UART0_DMA_TX_BUF_SIZE];
#pragma section default

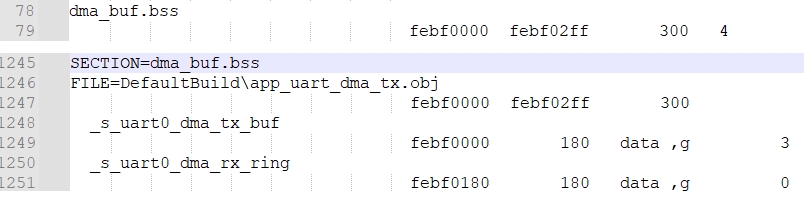

DMA buffer allocation result in map file:

UART DMA TX / RX config

Item	DMA source address	DMA source address count direction	DMA dest. address	DMA dest. address count direction
TX	`s_uart0_dma_tx_buf`	increase	`APP_UART0_TX_DR`	fix
RX	`APP_UART0_RX_DR`	fix	`s_uart0_dma_rx_ring`	increase

5. DMA address / register map

6. UART address / register map

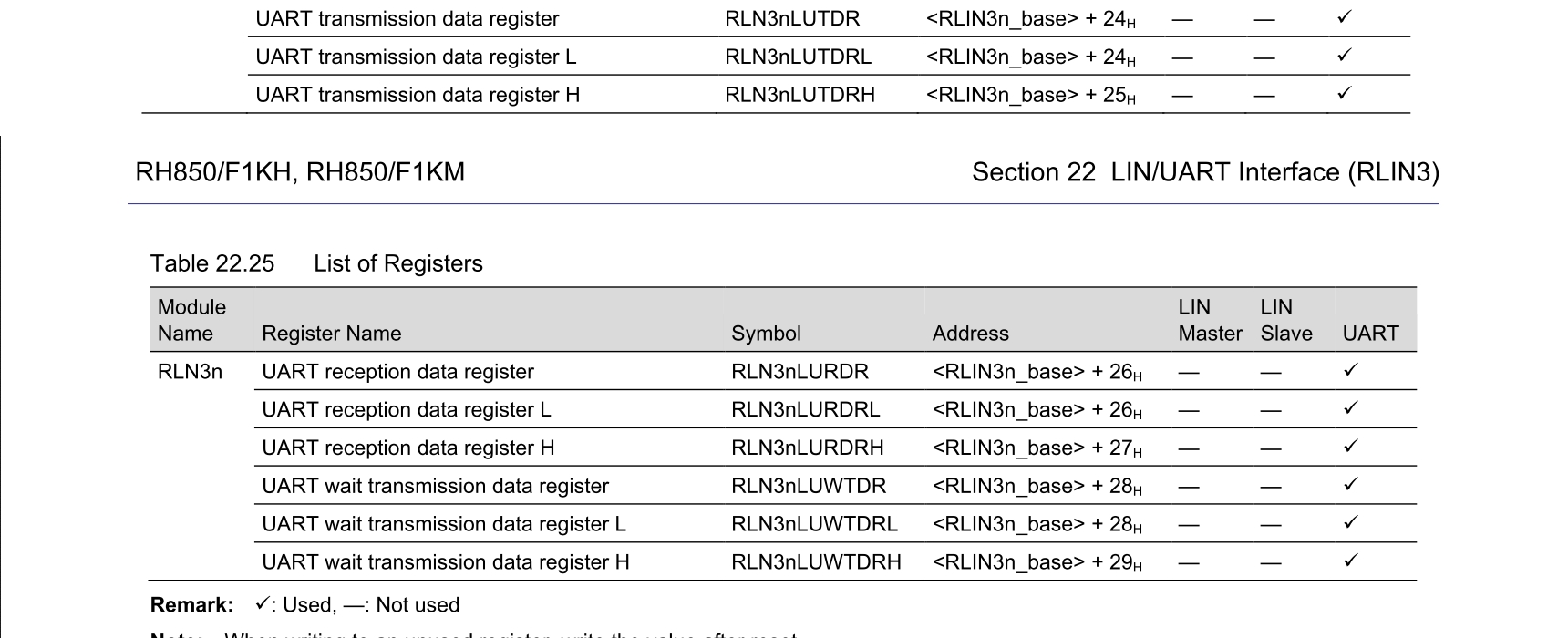

TX : RLN3nLUTDR

RX : RLN3nLURDR

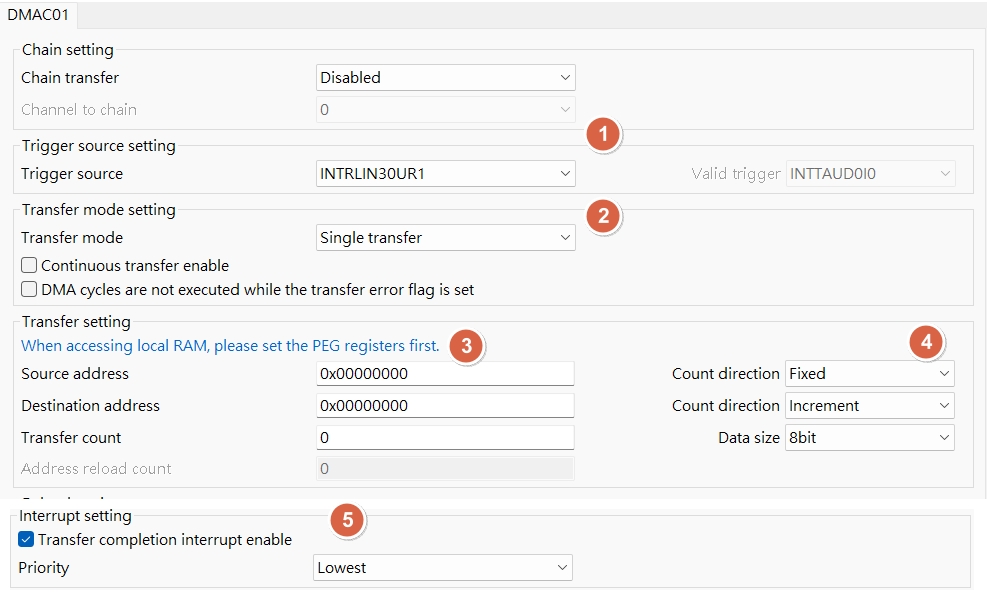

7. Smart Config settings

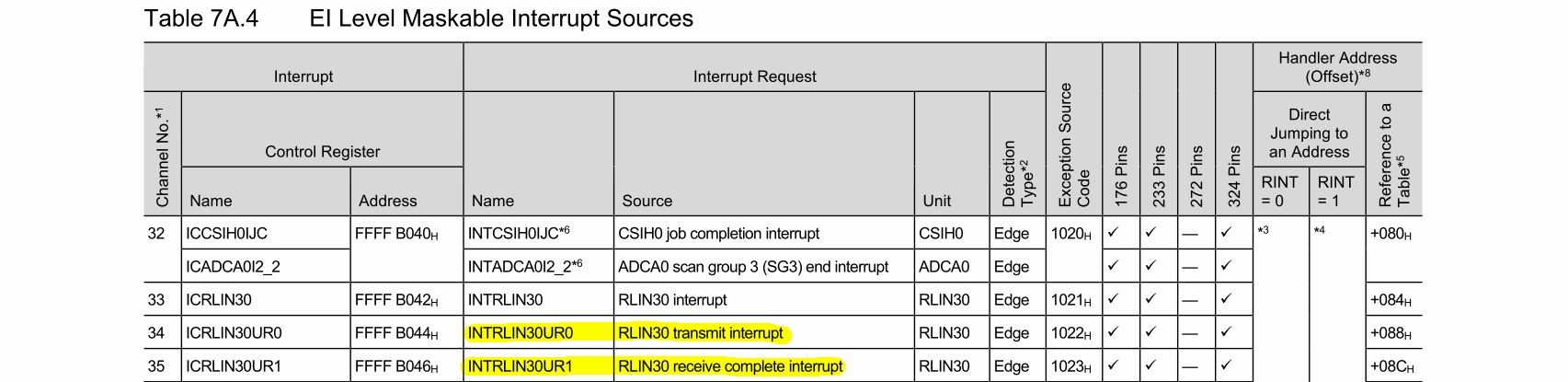

Target trigger source : UART0

INTRLIN30UR0 : RLIN30 transmit interrupt
INTRLIN30UR1 : RLIN30 receive complete interrupt

TX configuration

src : set in code (s_uart0_dma_tx_buf)
dest : set in code (APP_UART0_TX_DR)
src count : increase
dest count : fixed

RX configuration

src : set in code (APP_UART0_RX_DR)
dest : set in code (s_uart0_dma_rx_ring)
src count : fixed
dest count : increase

8. Code flow: TX DMA / RX interrupt

TX DMA (UART0)

Goal: CPU prepares a buffer, DMA moves bytes to UART0 TX data register.

Flow summary:

Prepare s_uart0_dma_tx_buf[] with payload.
Configure DMA source = buffer, dest = APP_UART0_TX_DR.
Set count = payload length, src count increment, dest count fixed.
Enable DMA channel, UART0 TX trigger kicks DMA per byte.
TX done interrupt (or DMA end flag) marks completion.

Notes:

TX DMA uses INTRLIN30UR0 trigger.
PDMA0.DM00CM must include PE/SPID/supervisor settings before start.

void APP_UART0_DMA_TxSend(const uint8_t *data, uint16_t len)
{
    uint16_t copy_len;

    // memset(s_uart0_dma_tx_buf, 0xAA, sizeof(s_uart0_dma_tx_buf));


    if ((data == 0) || (len == 0U))
    {
        return;
    }

    while (UART0_TX_IS_BUSY())
    {
        /* wait until TX can accept data */
    }

    R_Config_DMAC00_Suspend();
    R_Config_DMAC00_Stop();
    (void)DRV_DMA_ClearTcAndErr(APP_UART0_DMA_UNIT, APP_UART0_DMA_TX_CH);

    copy_len = app_uart0_dma_txbuf_write(data, len);
    if (copy_len == 0U)
    {
        return;
    }
    // tiny_printf("len2:%u\r\n", len);
    // tiny_printf("copy_len2:%u\r\n", copy_len);

    (void)DRV_DMA_SetChannelEx(APP_UART0_DMA_UNIT,
                              APP_UART0_DMA_TX_CH,
                              APP_DMA_CH0_SRC_ADDR,
                              APP_DMA_CH0_DST_ADDR,
                              copy_len);

    s_uart0_dma_tx_busy = 1U;
    R_Config_DMAC00_Resume();
    R_Config_DMAC00_Start();

    APP_UART0_TX_DR = s_uart0_dma_tx_buf[0];

    // while (! (PDMA0.DCST0 & _DMAC_TRANSFER_COMPLETION_FLAG_CLEAR));
    while (s_uart0_dma_tx_busy != 0U)
    {
        /* optional: add timeout / feed WDT */
    }
}

RX interrupt (UART0)

Goal: Use UART RX interrupt to capture bytes into a ring buffer, then use idle timer to decide a frame is complete.

Flow summary:

Enable UART0 RX interrupt (no DMA for RX).
RX ISR reads APP_UART0_RX_DR and pushes into s_uart0_dma_rx_ring[].
Each RX byte restarts the idle timer.
Timer expiry => treat as end-of-frame, stop UART, set g_rcv_data_finish.
Main loop checks flag, processes buffer, then re-arm UART + timer.

Notes:

RX uses INTRLIN30UR1 interrupt source.
RX buffer is in dma_buf section to ensure DMA-safe SRAM layout, even though RX is interrupt based.

9. RX idle detection timer

RH850 UART has no idle interrupt , need to use timer for idle detection (target: 2.5 bytes).

for uart rx idle timer isr :
8N1 , 1 byte = 10 bits
target : 2.5 bytes = 25 bits

target_isr_timing
- baud rate 115200 = (25 / 115200)*10^6 = 217.0us
- baud rate 415000 = (25 / 415000)*10^6 = 60.24us

timer_freq = PCLK(80MHz) / prescaler(1)
CDR0 = (timer_freq * target_isr_timing/10^6) - 1
- baud rate 115200 217.0us = (80MHz * 217us/10^6) - 1 = 80 * 217 - 1 = 0x43CF
- baud rate 415000 60.24us = (80MHz * 60.24us/10^6) - 1 = 80 * 60.24 - 1 = 0x12D3

// #define APP_UART0_BAUD              (415000U)
#define APP_UART0_BAUD              (115200U)

#if (APP_UART0_BAUD == 115200U)
    TAUJ1.CDR0 = 0x43CFU;   /* 217 us = 2.5 bytes @115200 */
#elif (APP_UART0_BAUD == 415000U)
    TAUJ1.CDR0 = 0x12D3U;   /* 60.24 us = 2.5 bytes @415000 */
#else
    #error "Unsupported APP_UART0_BAUD"
#endif

RX TIMER IDLE detection flow

flowchart TD A[APP_UART0_RX_Init] --> B[Reset RX buffer & state] B --> C[UART0 Receive 1 byte enable] C --> D[UART0 Start] D --> E[STATE = RX_INIT] E --> F[Start t3.5 Timer] %% UART RX interrupt F -->|UART RX IRQ| G[APP_UART0_RX_callback_receiveend] G --> H[Store received byte] H --> I[_prvvUARTRxISR] %% State machine I -->|STATE_RX_INIT| J[Enable Timer] I -->|STATE_RX_ERROR| J I -->|STATE_RX_IDLE| K[bufferPos=0] K --> L[Store first byte] L --> M[STATE = RX_RCV] M --> J I -->|STATE_RX_RCV| N{bufferPos < BUF_SIZE?} N -->|Yes| O[Store byte] O --> J N -->|No| P[STATE = RX_ERROR] P --> Q[Reset state] %% Timer expiry (IDLE detected) J -->|Timer expired| R[APP_UART0_RX_TimerIsr] R --> S[_prvvTIMERExpiredISR] S --> T{STATE == RX_RCV?} T -->|Yes| U[UART Stop] U --> V[g_rcv_data_finish = 1] T -->|No| W[Ignore] V --> X[STATE = RX_IDLE] %% Main loop process X --> Y[APP_UART0_RX_Process] Y -->|g_rcv_data_finish| Z[Dump RX buffer] Z --> AA[Clear buffer] AA --> AB[Reset state] AB --> AC[UART Start]

10. Debug watch window

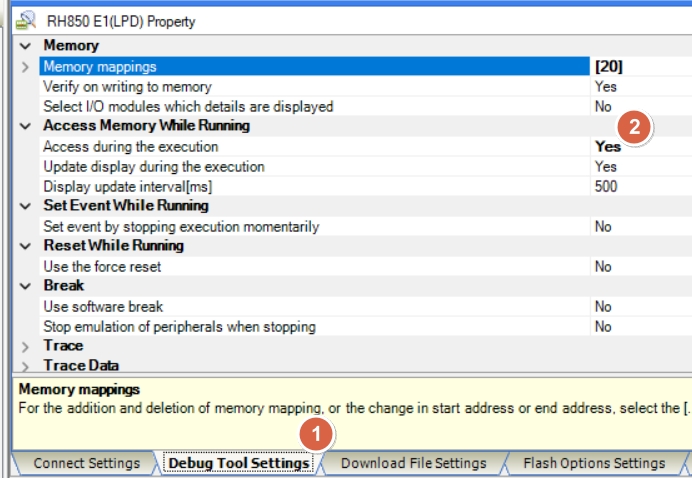

If need to check global variable / array in watch windows, enable [Access during the execution] at Debugger Property > Debug Tool Settings tab.
