Nuvoton M2A23 – UART ISP code custom flow

Reference Project

This training material is based on the below reference project:

https://github.com/released/M2A23BSP_ISP_UART_APROM

Agenda

System overview Flash layout + dual UART
Boot code LDROM + APROM-end flow — custom ISP flow
Application code flow
Build & image generation
Tool settings ICP / ISP
Runtime notes & pitfalls

1. System overview

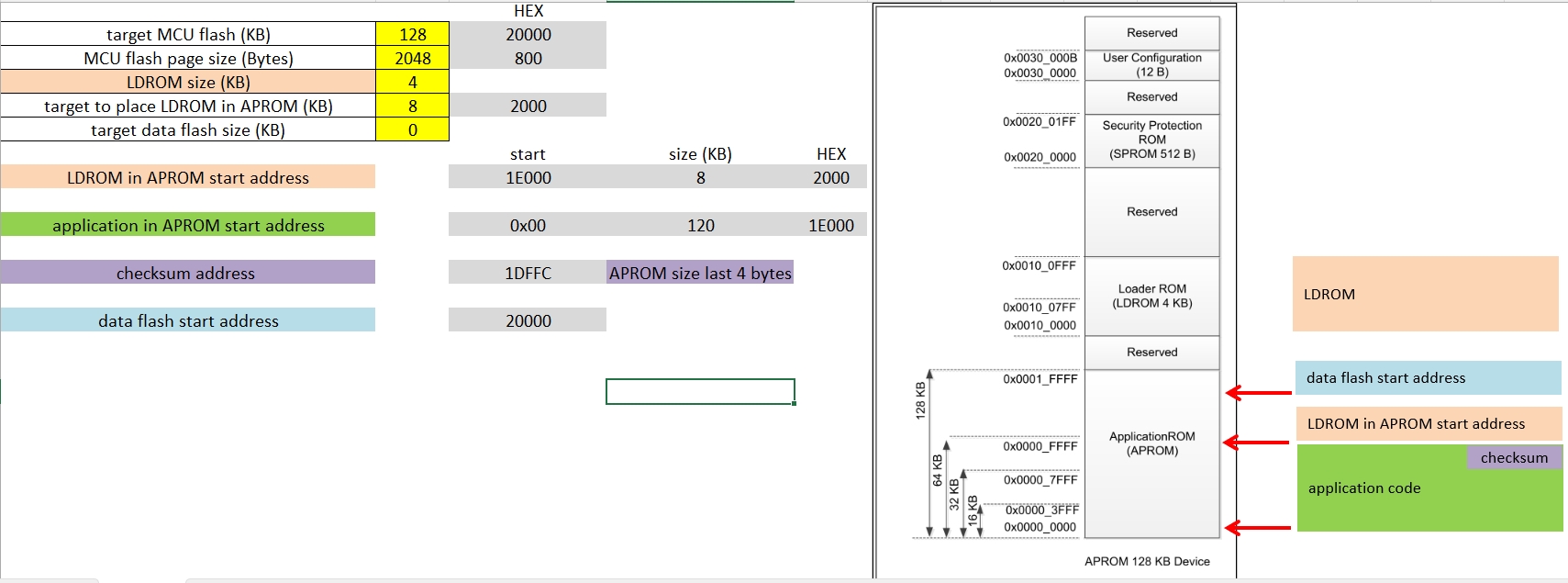

Flash allocation actual project

Important !!!
Address is configurable

APROM Application start / size

APROM Boot extension base address example: 0x1E000

These addresses are project-dependent and NOT fixed by hardware , adjust them according to:

actual project application code size requirement

actual project boot code feature size

The values used in this project 0x1E000, 0x1DFFCare one validated reference only.

Region	Address	Size	Purpose
APROM Application	`0x0000_0000 ~ 0x0001_DFFF`	`0x1E000`	app code
APROM checksum	`0x0001_DFFC`	4 bytes	app code checksum address (CRC32)
Boot code ext in APROM	`0x0001_E000 ~ 0x0001_FFFF`	8 KB	boot code extension
Boot code in LDROM	`0x0010_0000 ~ 0x0010_0FFF`	4 KB	boot code

UART assignment hard separation

UART	Function	Used in
UART0 PB12/PB13	ISP protocol	Boot only , to upgrade app code
UART1 PA8/PA9	printf / progress log	Boot + App

2. Boot code flow (LDROM + end of APROM)

Source-level structure important

main.c
 └─ main
    ├─ SYS_Init
    ├─ ISP_Init
    ├─ ISP_check_app
    └─ while1
        └─ ISP_process

isp_config.c   ← ★ Custom ISP state & policy
isp_user.c     ← UART RX / CMD handler

Boot code flow

flowchart TD A[Reset / Power-on] --> B[SYS_Init + UART Init UART0=ISP, UART1=Log] B --> C[ISP_Init FMC_Open + ISP Enable] C --> D[ISP_check_app] D --> E{Verify app CRC32 APROM 0..size-4 vs last word} E -->|YES| F[Jump to APROM VECMAP=**APROM start** CPU reset] E -->|NO| G[Stay in bootloader] G --> H[ISP_process] H --> I[CMD_CONNECT?] I -->|YES| J[Receive packet 64B ParseCmd] J --> K[Execute command Update/Erase/Run/Reset...] K -->|CMD_UPDATE_APROM| L[WriteData] L --> M[Update progress by UART1 log] M --> H K-->|FINISH : CMD_RUN_APROM| N[SYS_ResetChip restart boot]

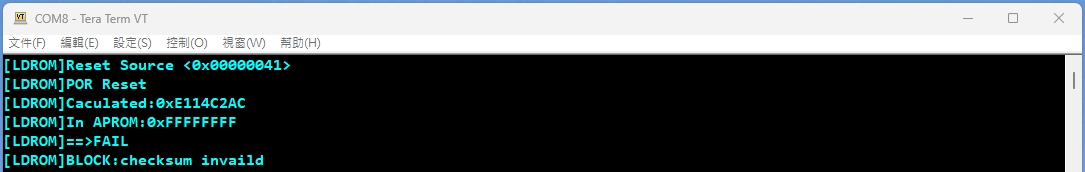

Verify app CRC32 APROM (FAIL)
Verify app CRC32 APROM (OK)
successful entry app code

Key point training emphasis

Protocol parsing and policy are separated
- isp_user.c → packet handling
- isp_config.c → CRC check / boot decision / ISP behavior
UART logging is post-action only, never execute printf during RX parsing

3. Application code flow

flowchart TD A[App Reset Vector @ 0x0000_0000] --> B[System init peripherals init] B --> C[Normal run] C --> D{Enter update mode? button/command/flag} D -->|Yes| E[Erase checksum @ 0x1DFFC] D -->|NO|C E --> F[SYS_ResetChip] F --> G[return to Boot @ LDROM compare checksum CRC FAIL → ISP mode]

Practical triggers from reference

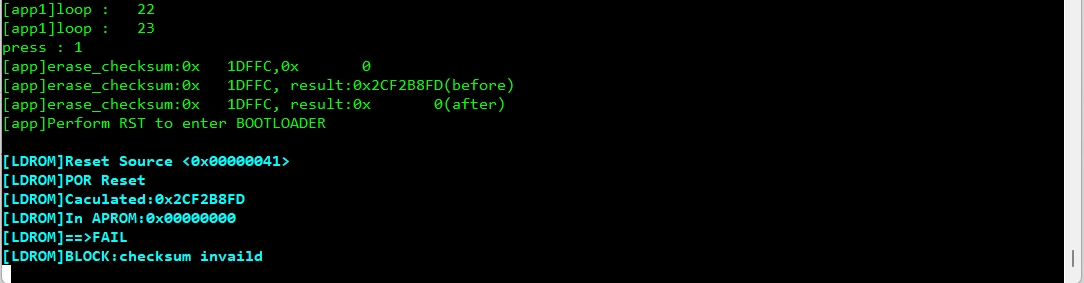

Press '1' by terminal → erase checksum (under app code)

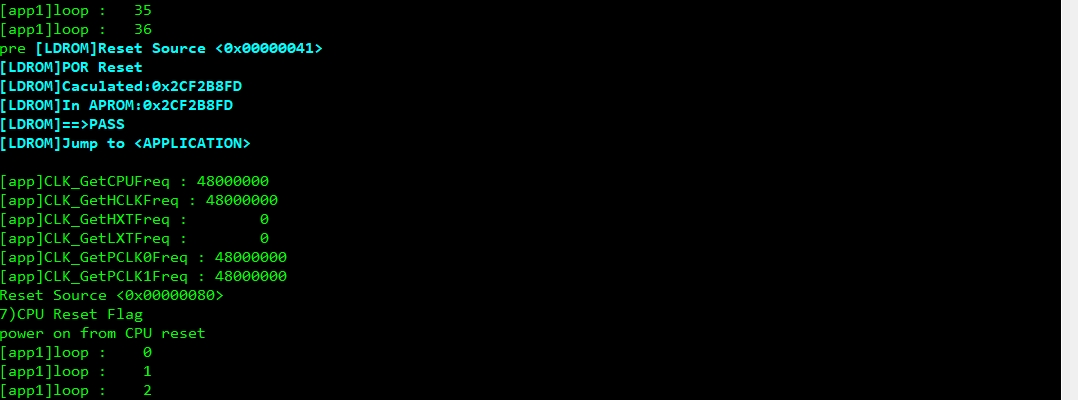

Press 'Z' / 'z' by terminal → reset to LDROM (under app code)

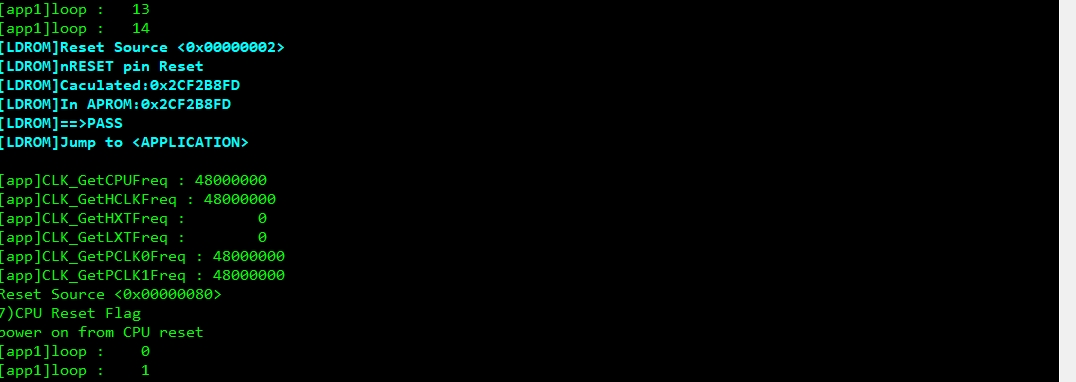

Press nRESET PIN on EVM (boot from boot code to app code)

Scatter file in Boot code

Boot code project uses a single scatter file: uart_iap.sct.

Modify the address/size macros if project memory layout changes

The linker layout for:

LDROM
APROM boot extension

4. Build & image generation

Keil targets recommended

Target	Output
LDROM_BOOT	`LDROM_Bootloader.bin`
APROM_BOOT_EXT	`APROM_Bootloader.bin` @ `0x1E000`

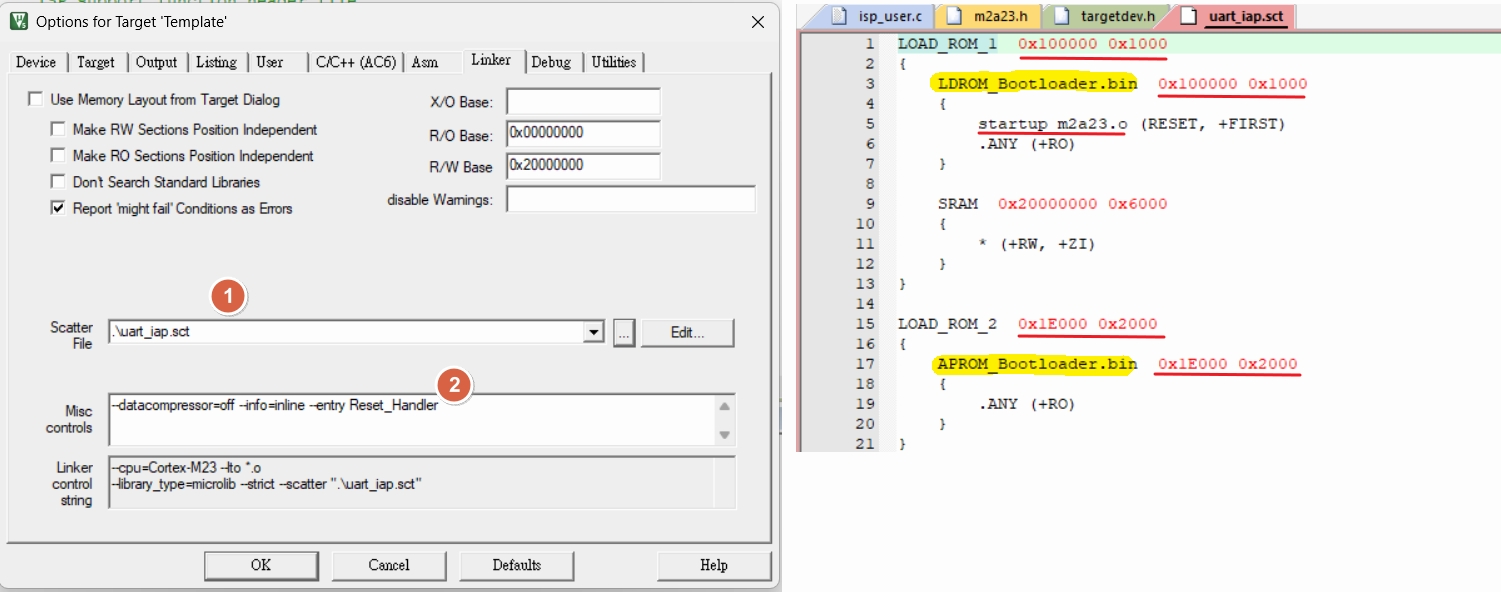

Scatter file for boot code (uart_iap.sct)

LOAD_ROM_1  0x100000 0x1000
{
	LDROM_Bootloader.bin  0x100000 0x1000
	{
		startup_m2a23.o (RESET, +FIRST)
        .ANY (+RO)
	}

	SRAM  0x20000000 0x6000
	{
		* (+RW, +ZI)
	}
}

LOAD_ROM_2  0x1E000 0x2000
{
	APROM_Bootloader.bin  0x1E000 0x2000
	{
        .ANY (+RO)
	}
}

Checksum strategy actual project

CRC32 over: 0x0000_0000 ~ 0x0001_DFFB
Stored at: 0x0001_DFFC
Boot compares SW CRC32 vs stored value

5. Tool settings

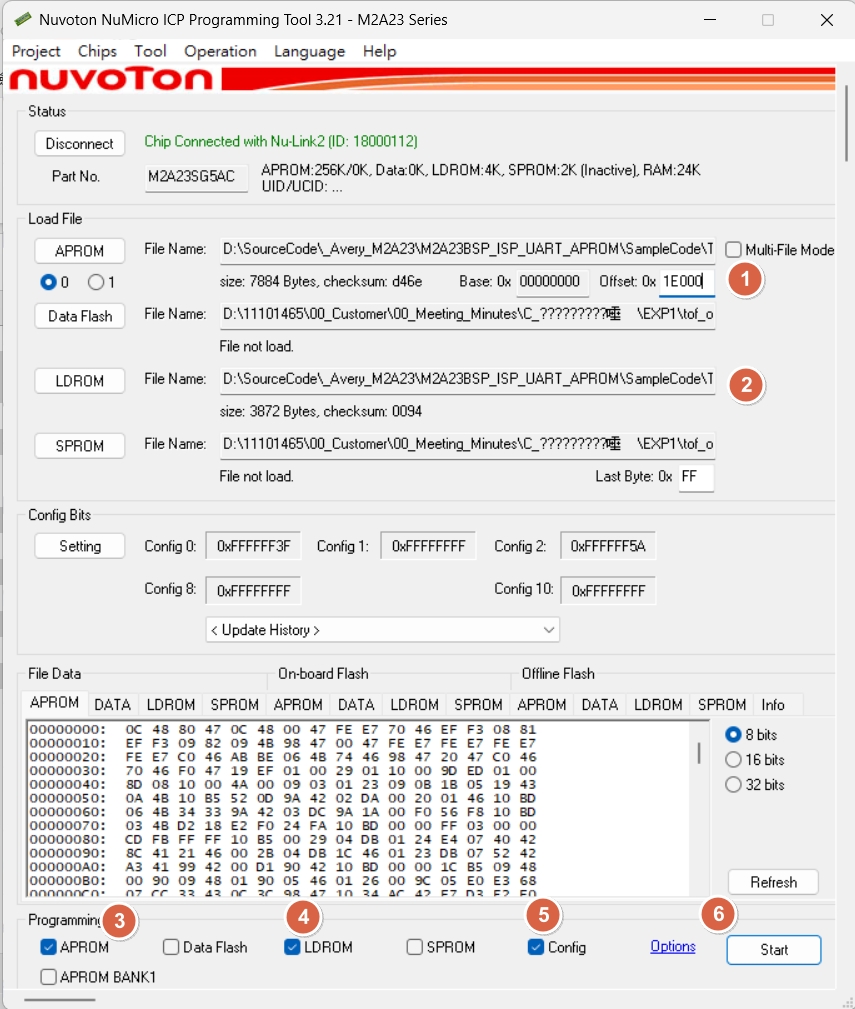

ICP tool mandatory (programming boot code)

Program:
- LDROM_Bootloader.bin → LDROM
- APROM_Bootloader.bin → APROM @ 0x1E000

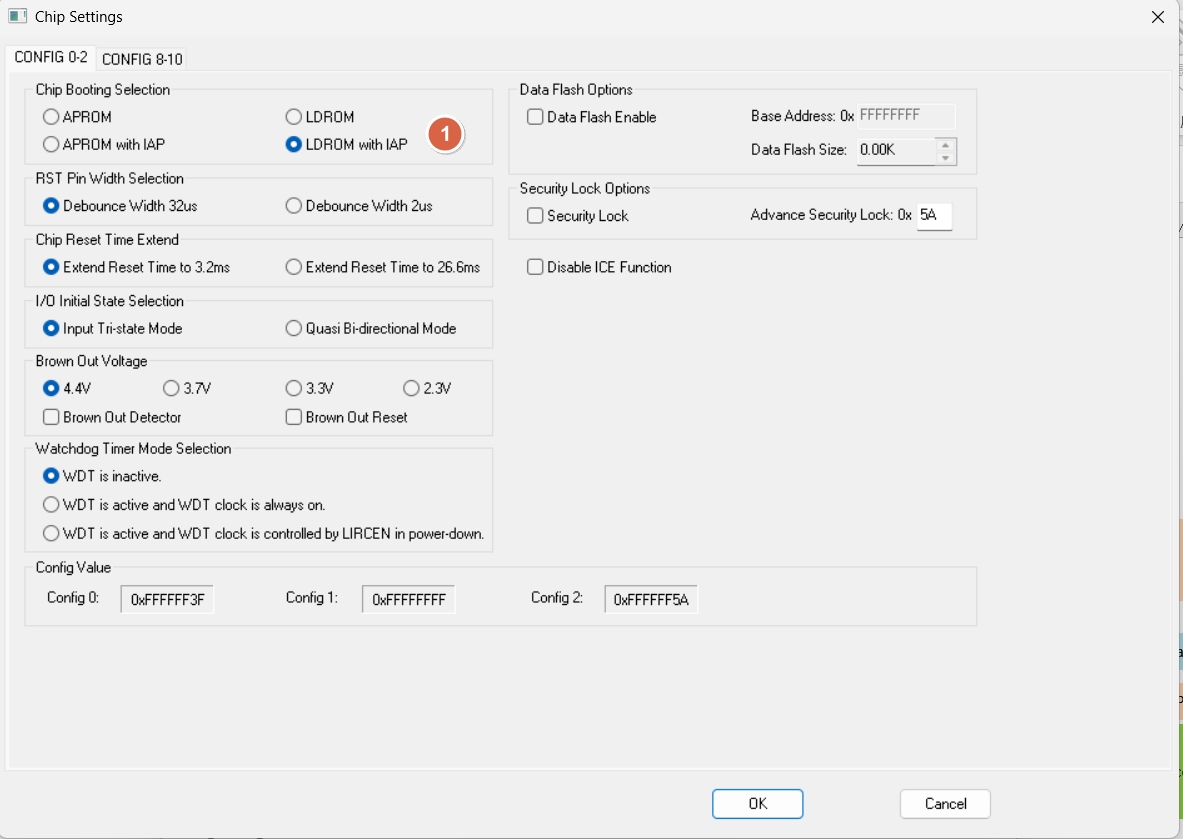

CONFIG:
- Boot from LDROM WITH IAP

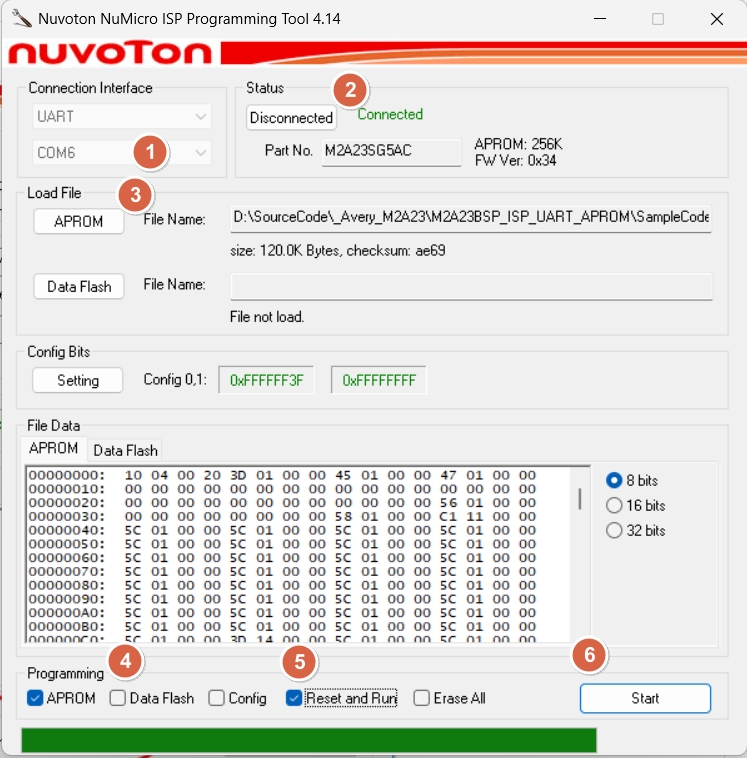

ISP tool settings (programming app code)

Connect ISP UART UART0 (target PCB) to PC USB-to-UART (UART bride)
Open ISP tool (SW)

Select UART port & baud rate
Click “Connect” ( if MCU under boot mode , will stay with connected)
Load image:
- APROM: load APROM_application.bin
Select APROM
Select Reset and Run
execute Program Start

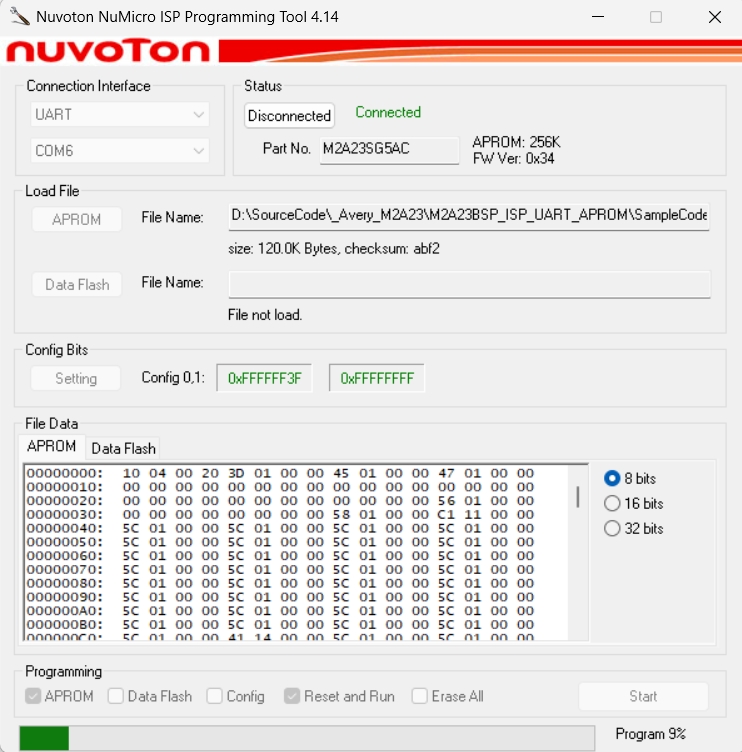

under ISP code tool , during upgrade application code

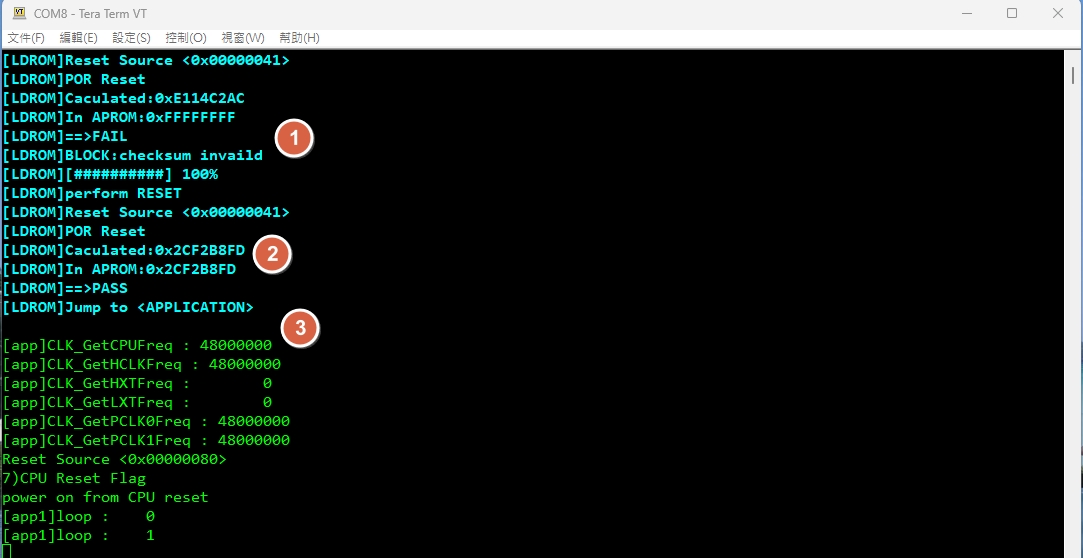

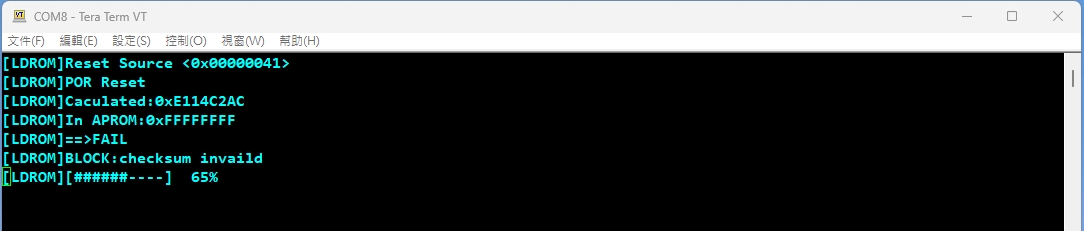

under boot code , during upgrade application code

Notes

Bootloader may have a timeout window; connect sequence matters.
After update, ensure CRC word is correct; otherwise boot will stay in ISP.

6. UART log & progress bar

#define LDROM_DEBUG(format, args...) 		printf("\033[1;36m" "[LDROM]" format "\033[0m", ##args)

Progress bar width=10:

[LDROM] [#####-----] 50%

Printed after WriteData only

7. Summary training takeaway

Boot is policy-driven isp_config.c
Application controls update entry by checksum invalidation

Dual UART avoids ISP/log interference
CRC32 is the single source of truth for boot decision

Appendix: Extended Build / Tool Details

Agenda

Boot code in LDROM,APROM image generation
SRecord post-build merge + CRC32

Boot code: split into 2 binaries LDROM + APROM end @ 0x1E000

Why split?

LDROM size is limited M2A23 LDROM is 4 KB, but training bootloader often needs:
- protocol + CRC32 + log + timeouts + safety checks

layout default

APP: 0x0000_0000 ~ 0x0001_DFFF 0x1E000 bytes
LDROM ext in APROM: 0x0001_E000 ~ APROM_END boot extension, fixed address
LDROM: device LDROM region 4 KB

output artifacts

LDROM_Bootloader.bin boot code stage-1
APROM_Bootloader.bin boot code stage-2, linked at APROM@0x1E000

refer to uart_iap.sct

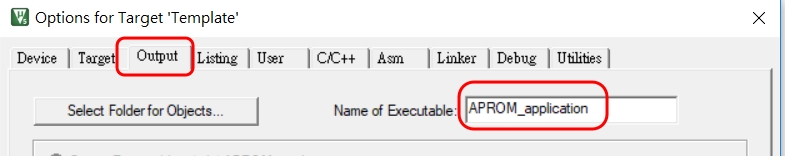

APROM_application.bin app code linked at 0x0000_0000, size ≤ 0x1E000, includes CRC word

SRecord settings merge + CRC32 append

Use cases

Fill holes with 0xFF

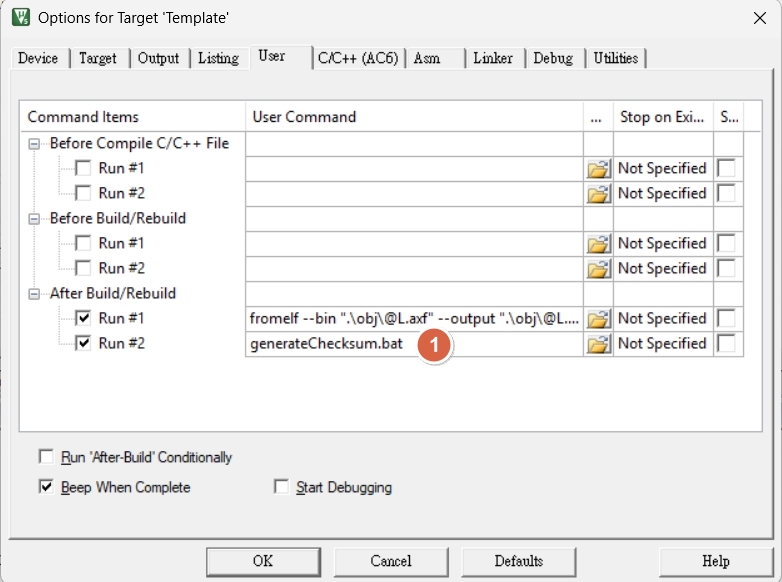

KEIL setting : after compile , generate checksum with by batch file

generateChecksum.bat

@echo off
setlocal EnableDelayedExpansion

:: MODIFY checksum_config.cmd only
:: Load application layout configuration
:: Used only during batch execution
call checksum_config.cmd

:: DO NOT EDIT checksum_flow_gen.cmd
:: It is auto-generated every build
:: generate srec script with expanded values
:: Generate srec_cat script with expanded numeric values
:: Avoids %VAR% expansion issues in srec_cat
(
echo obj\APROM_application.bin -binary
echo -crop %APP_START% %APP_CRC_END%
echo -fill 0xFF %APP_START% %APP_CRC_END%
echo -crc32-l-e %CRC_POS%
echo -crop %CRC_POS% %CRC_END%
) > checksum_flow_gen.cmd

:: dump checksum
:: Execute checksum calculation
:: Output result as HEX dump to console
:: Used for verification
srec_cat @checksum_flow_gen.cmd -Output - -HEX_Dump

:: update binary
:: Write calculated checksum back into binary
:: Produces final binary with embedded CRC
srec_cat @checksum_flow_gen.cmd ^
    obj\APROM_application.bin -binary ^
    -fill 0xFF %APP_START% %APP_CRC_END% ^
    -Output obj\APROM_application.bin -binary

:: generate hex
:: Convert final binary into Intel HEX format
:: Used for programming or downstream tools
srec_cat obj\APROM_application.bin -binary ^
    -Output obj\APROM_application.hex -intel

checksum_config.cmd (the only file need to modify)

:: ===== Application layout configuration =====

:: application start
set APP_START=0x0000

:: checksum calculate end (exclude checksum field)
set APP_CRC_END=0x1DFFC

:: checksum field start
set CRC_POS=0x1DFFC

:: checksum field size (CRC32 = 4 bytes)
set CRC_SIZE=0x0004

:: checksum field end
set CRC_END=0x1E000
