Nuvoton M2A23 – UART ISP code custom flow

Reference Project

This training material is based on the below reference project:

https://github.com/released/M2A23BSP_IAP_UART_APROM

Agenda

System overview Flash layout + dual UART
Boot code place in APROM flow — custom ISP flow
Application code flow
Build & image generation
Tool settings ICP / ISP
Runtime notes & pitfalls

1. System overview

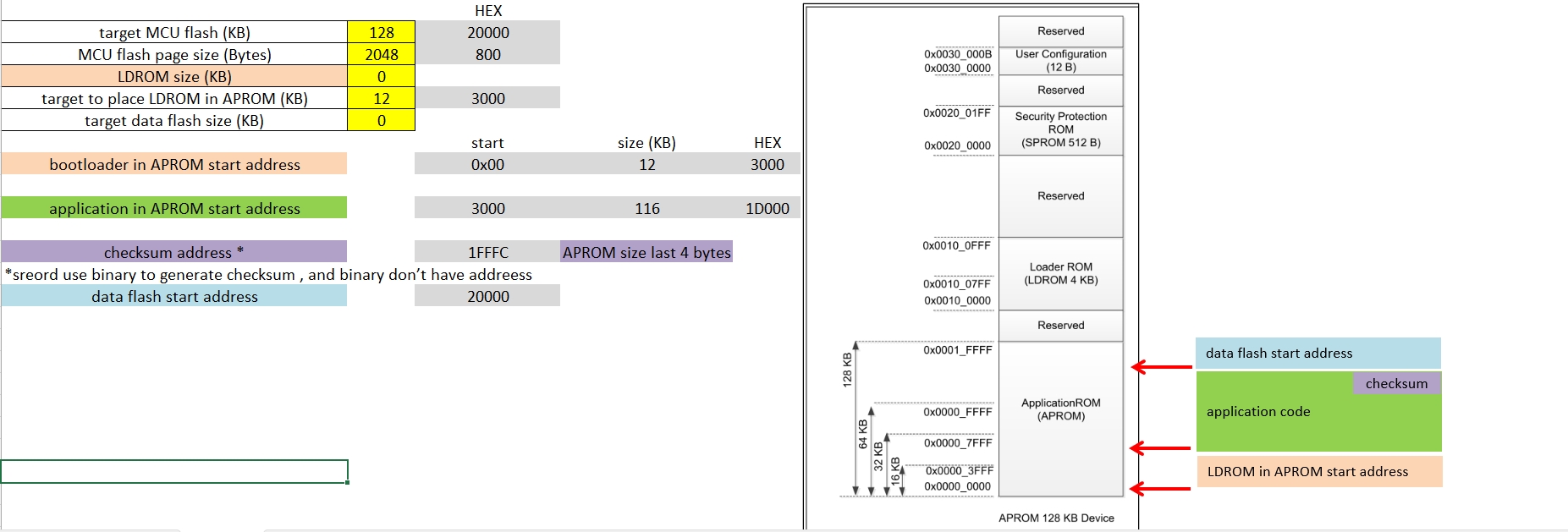

Flash allocation actual project

Important !!!
Address is configurable

APROM App code start / size

APROM Boot code base address example: 0x3000

These addresses are project-dependent and NOT fixed by hardware , adjust them according to:

actual project application code size requirement

actual project boot code feature size

The values used in this project 0x3000, 0x1FFFCare one validated reference only.

Region	Address	Size	Purpose
APROM Application	`0x0000_3000 ~ 0x0001_FFFF`	`0x1D000`	app code
APROM checksum	`0x0001_FFFC`	4 bytes	app code checksum address (CRC32)
Boot code in APROM	`0x0000_0000 ~ 0x0000_3000`	12 KB	boot code

UART assignment hard separation

UART	Function	Used in
UART0 PB12/PB13	ISP protocol	Boot only , to upgrade app code
UART1 PA8/PA9	printf / progress log	Boot + App

2. Boot code flow (place in start of APROM)

Source-level structure important

main.c
 └─ main
    ├─ SYS_Init
    ├─ ISP_Init
    ├─ ISP_check_app
    └─ while1
        └─ ISP_process

isp_config.c   ← ★ Custom ISP state & policy
isp_user.c     ← UART RX / CMD handler

Boot code flow

flowchart TD A[Reset / Power-on] --> B[SYS_Init + UART Init UART0=ISP, UART1=Log] B --> C[ISP_Init FMC_Open + ISP Enable] C --> D[ISP_check_app] D --> E{Verify app CRC32 APROM 0..size-4 vs last word} E -->|YES| F[Jump to APROM VECMAP=**app code start addr** CPU reset] E -->|NO| G[Stay in bootloader] G --> H[ISP_process] H --> I[CMD_CONNECT?] I -->|YES| J[Receive packet 64B ParseCmd] J --> K[Execute command Update/Erase/Run/Reset...] K -->|CMD_UPDATE_APROM| L[WriteData] L --> M[Update progress by UART1 log] M --> H K-->|FINISH : CMD_RUN_APROM| N[SYS_ResetChip restart boot]

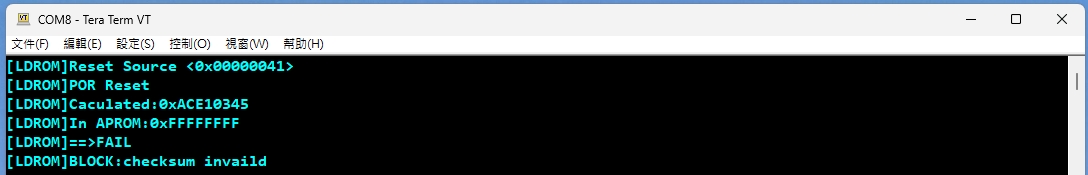

Verify app CRC32 APROM (FAIL)
Verify app CRC32 APROM (OK)
successful entry app code

Key point training emphasis

Protocol parsing and policy are separated
- isp_user.c → packet handling
- isp_config.c → CRC check / boot decision / ISP behavior
UART logging is post-action only, never execute printf during RX parsing

3. Application code flow

flowchart TD A[App Reset Vector @ 0x0000_3000] --> B[System init peripherals init] B --> C[Normal run] C --> D{Enter update mode? button/command/flag} D -->|Yes| E[Erase checksum @ 0x1FFFC] D -->|NO|C E --> F[SYS_ResetChip] F --> G[return to Boot code @ 0x0000 compare checksum CRC FAIL → ISP mode]

Practical triggers from reference

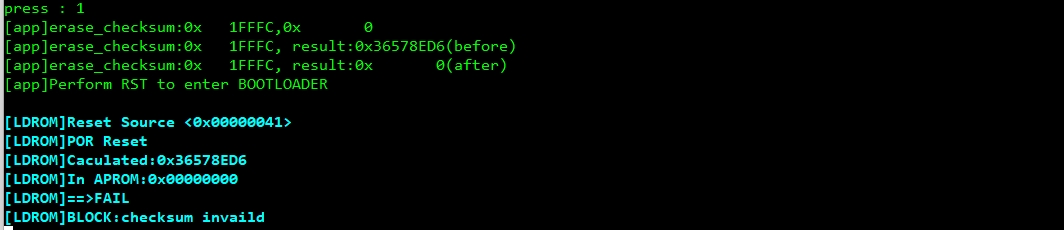

Press '1' by terminal → erase checksum (under app code)

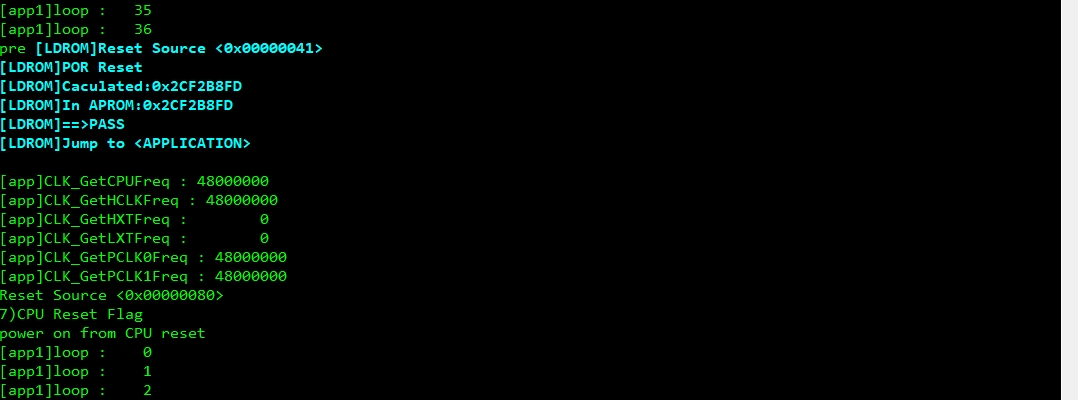

Press 'Z' / 'z' by terminal → reset to boot code (under app code)

Press nRESET PIN on EVM (boot from boot code to app code)

Scatter file in Boot code

Boot code project uses a single scatter file: uart_iap.sct.

Modify the address/size macros if project memory layout changes

The linker layout for:

boot code in APROM @ 0x0000

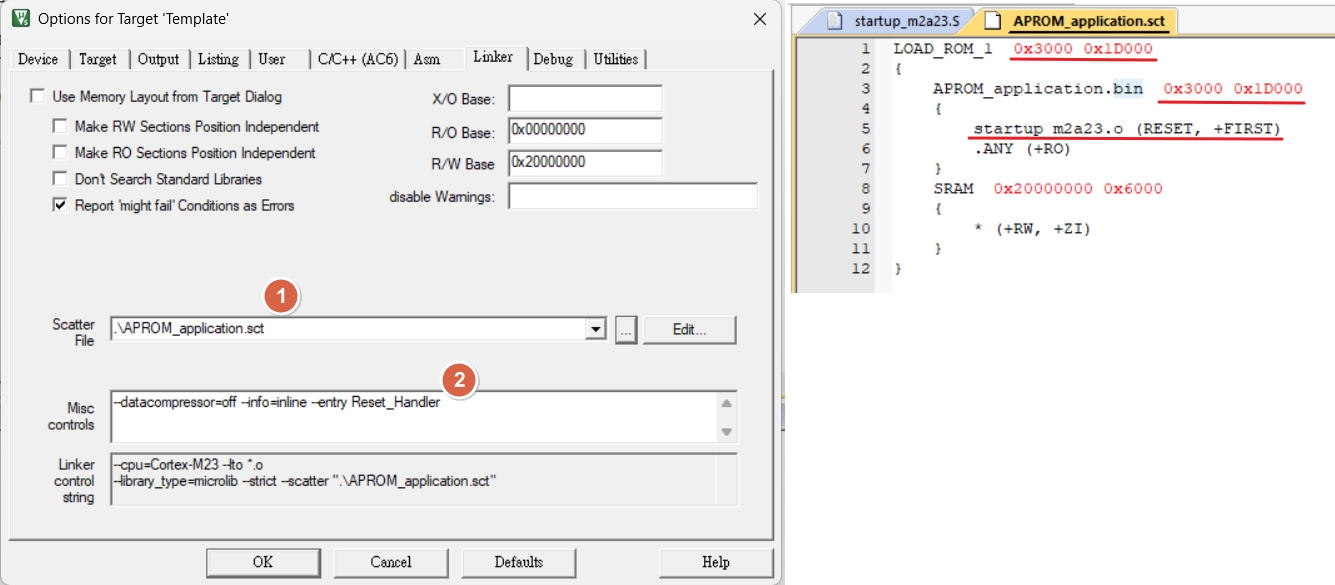

Scatter file in App code

App code project uses a single scatter file: APROM_application.sct.

Modify the address/size macros if project memory layout changes

The linker layout for:

boot code in APROM @ 0x3000

4. Build & image generation

Keil targets recommended

Target	Output
APROM_BOOT	`APROM_Bootloader.bin` @ `0x0000`

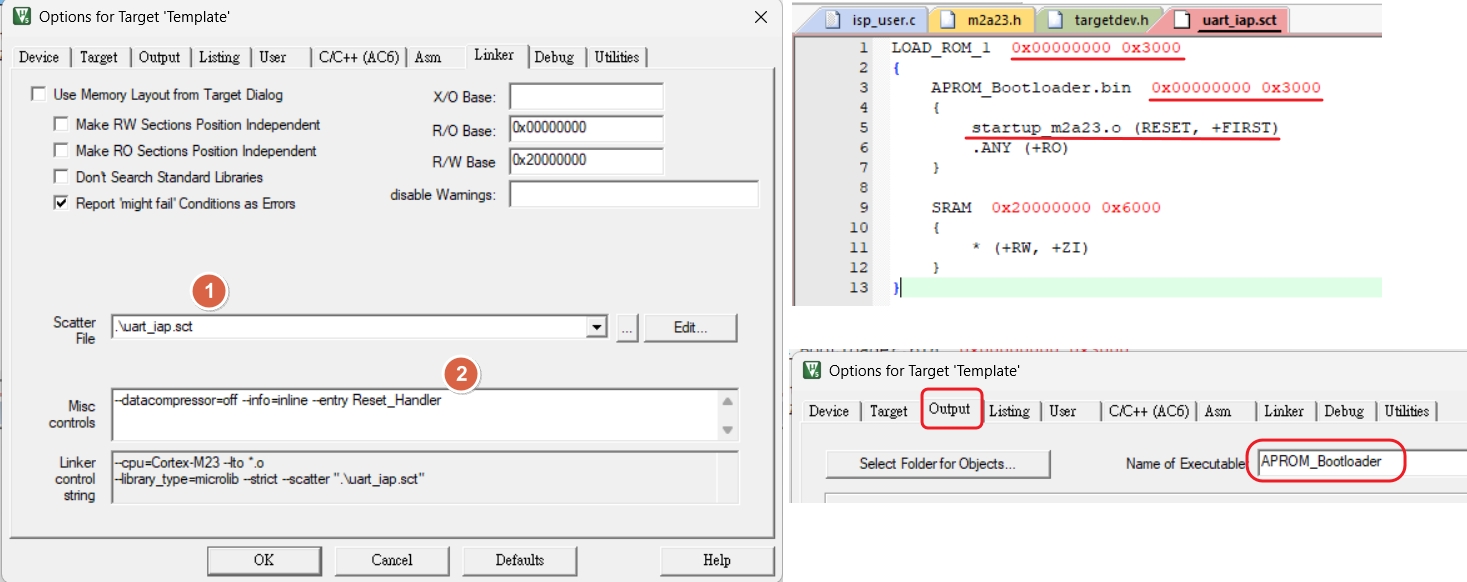

Scatter file for boot code (uart_iap.sct)

LOAD_ROM_1  0x00000000 0x3000
{
	APROM_Bootloader.bin  0x00000000 0x3000
	{
		startup_m2a23.o (RESET, +FIRST)
        .ANY (+RO)
	}

	SRAM  0x20000000 0x6000
	{
		* (+RW, +ZI)
	}
}

Target	Output
APROM_APP	`APROM_application.bin` @ `0x3000`

Scatter file for boot code (APROM_application.sct)

LOAD_ROM_1  0x3000 0x1D000
{
	APROM_application.bin  0x3000 0x1D000
	{
		startup_m2a23.o (RESET, +FIRST)
        .ANY (+RO)
	}
	SRAM  0x20000000 0x6000
	{
		* (+RW, +ZI)
	}
}

Checksum strategy actual project

CRC32 over: 0x0000_3000 ~ 0x0001_FFFB
Stored at: 0x0001_FFFC
Boot compares SW CRC32 vs stored value

5. Tool settings

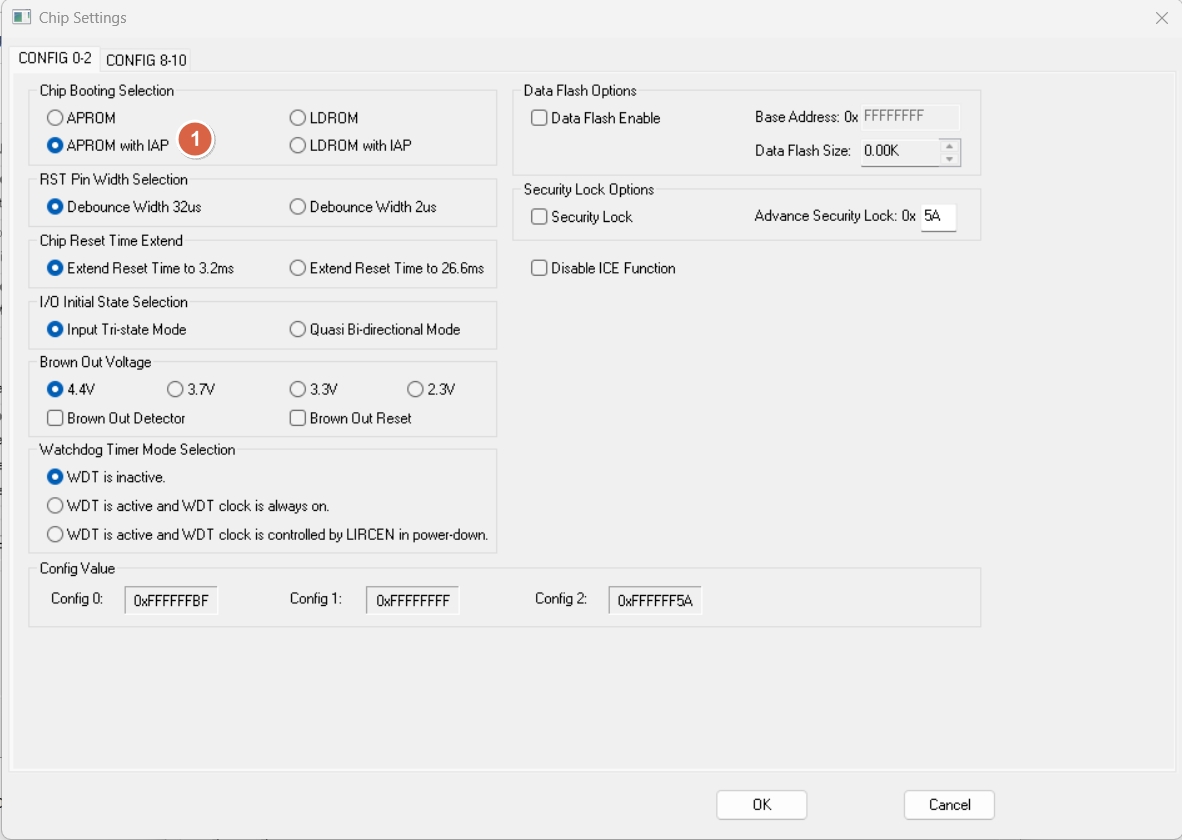

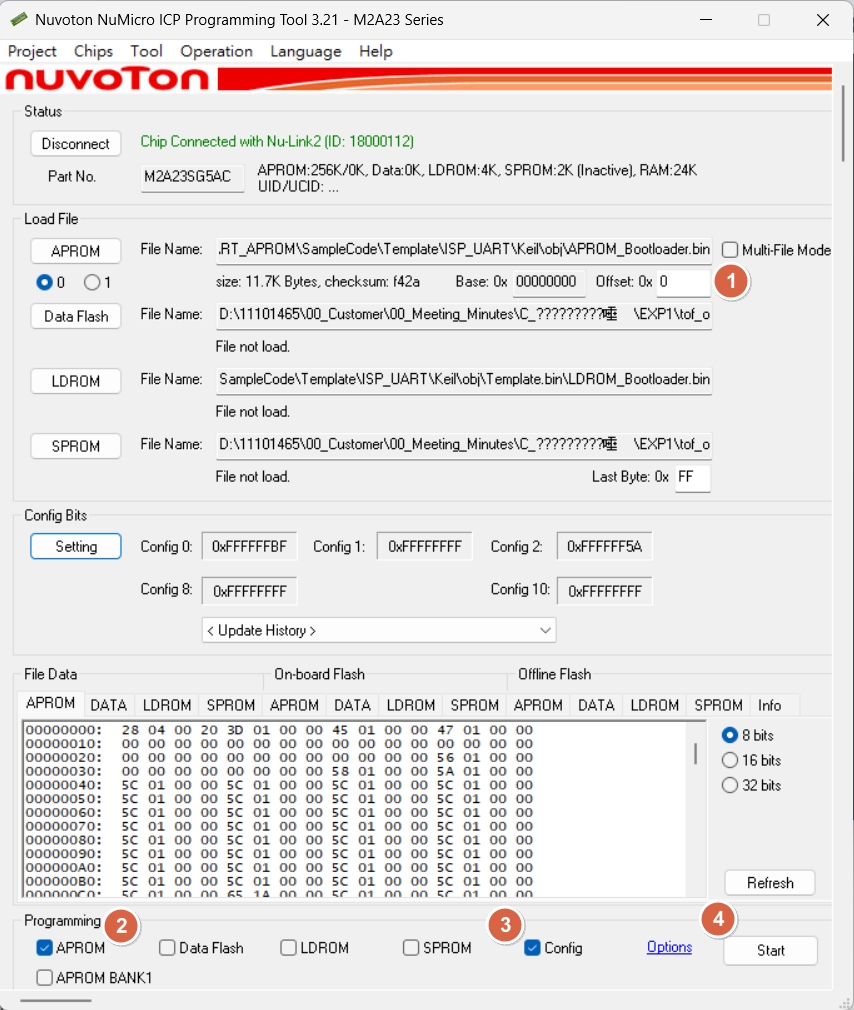

ICP tool mandatory (programming boot code)

Program:
- APROM_Bootloader.bin → APROM @ 0x0000

CONFIG:
- Boot from APROM WITH IAP

ISP tool settings (programming app code)

Connect ISP UART UART0 (target PCB) to PC USB-to-UART (UART bride)
Open ISP tool (SW)

Select UART port & baud rate
Click “Connect” ( if MCU under boot mode , will stay with connected)
Load image:
- APROM: load APROM_application.bin
Select APROM
Select Reset and Run
execute Program Start

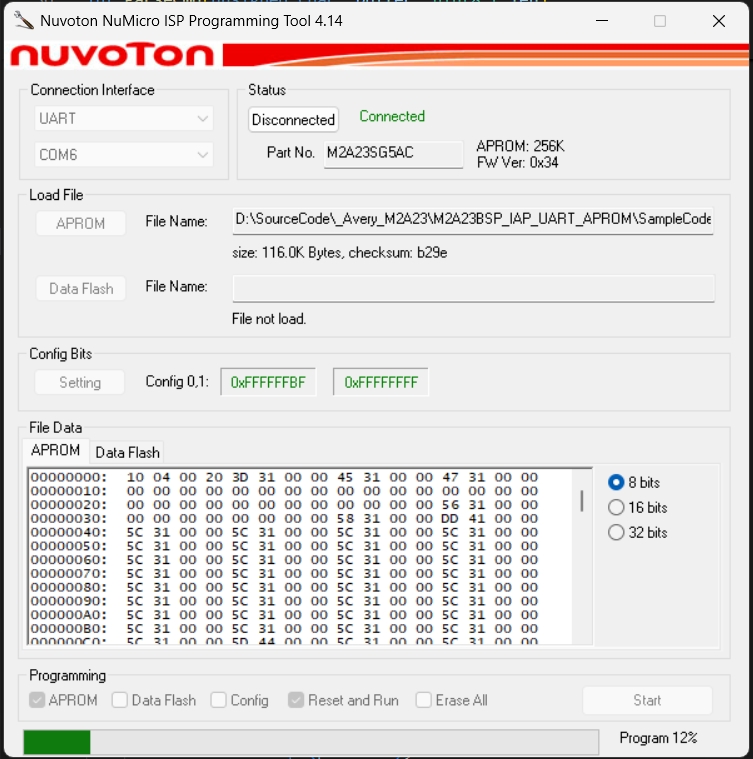

under ISP code tool , during upgrade application code

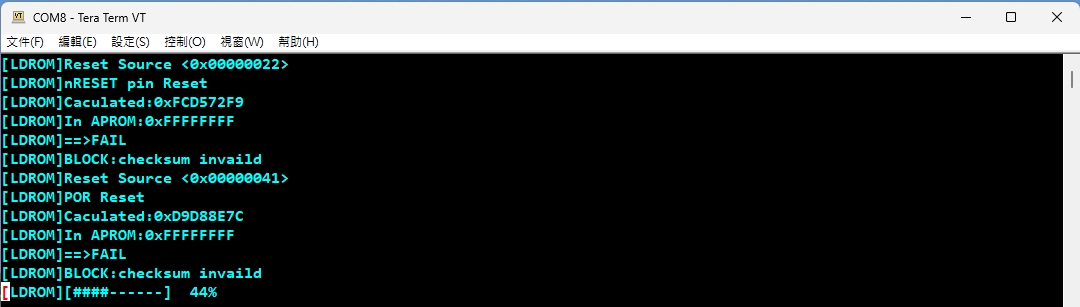

under boot code , during upgrade application code

Notes

Bootloader may have a timeout window; connect sequence matters.
After update, ensure CRC word is correct; otherwise boot will stay in ISP.

6. UART log & progress bar

#define LDROM_DEBUG(format, args...) 		printf("\033[1;36m" "[LDROM]" format "\033[0m", ##args)

Progress bar width=10:

[LDROM] [#####-----] 50%

Printed after WriteData only

7. Summary training takeaway

Boot is policy-driven isp_config.c
Application controls update entry by checksum invalidation

Dual UART avoids ISP/log interference
CRC32 is the single source of truth for boot decision

Appendix: Extended Build / Tool Details

Agenda

Boot code in boot code ,app code image generation
SRecord post-build merge + CRC32

Boot code: place @ start of APROM 0x0000

layout default

APPROM: 0x0000_0000 ~ 0x0000_3000 0x3000 bytes

output artifacts

APROM_Bootloader.bin boot code stage, linked at APROM@0x0000

refer to uart_iap.sct

App code: place @ APROM 0x3000

layout default

APPROM: 0x0000_3000 ~ 0x0002_0000 0x1D000 bytes

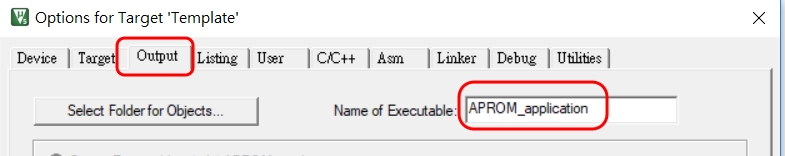

output artifacts

APROM_application.bin app code linked at 0x0000_3000, size ≤ 0x1D000, includes CRC word

refer to APROM_application.sct

SRecord settings merge + CRC32 append

Use cases

Fill holes with 0xFF

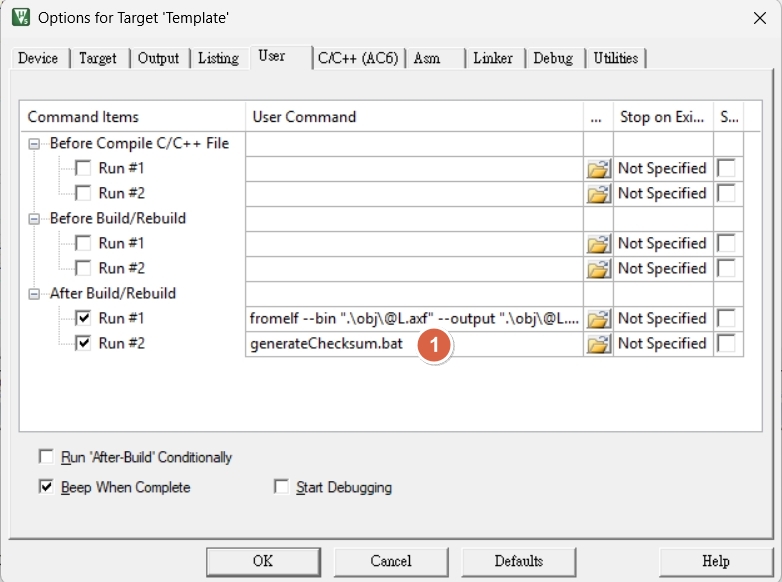

KEIL setting : after compile , generate checksum with by batch file

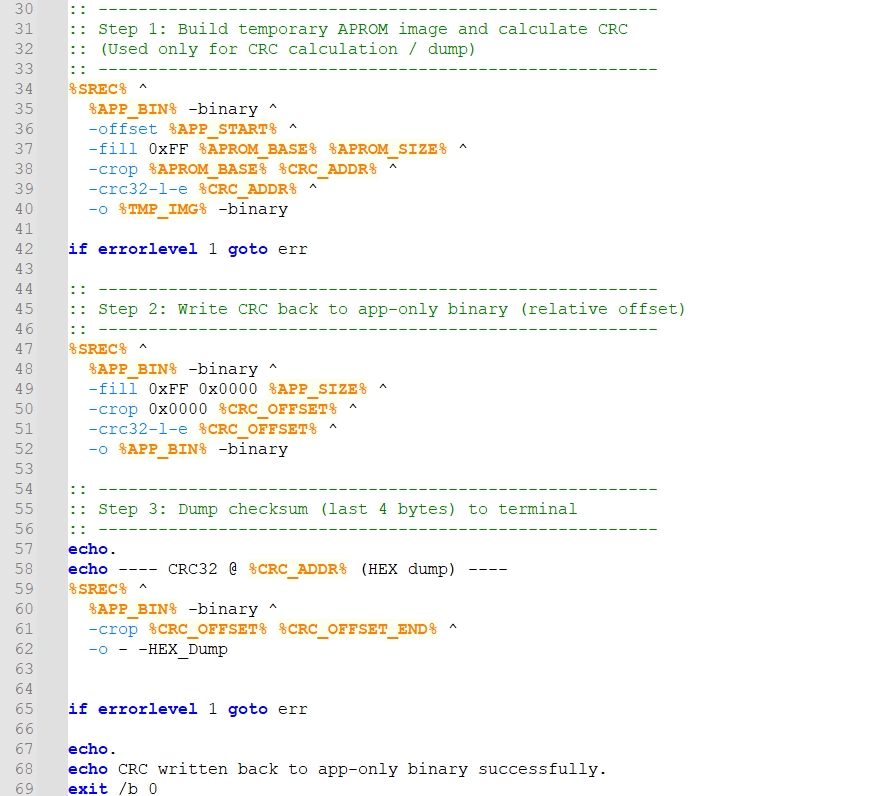

generateChecksum.bat

@echo off
setlocal

call checksum_config.cmd

set SREC=srec_cat

set APP_BIN=obj\APROM_application.bin
set TMP_IMG=obj\_aprom_crc_tmp.bin

echo ========================================================
echo Generate CRC32 (ABSOLUTE address semantics)
echo --------------------------------------------------------
echo APP_START  = %APP_START%
echo APP_SIZE   = %APP_SIZE%
echo CRC_ADDR   = %CRC_ADDR%
echo APP_BIN    = %APP_BIN%
echo ========================================================

:: =========================================================
:: Derived values (DO NOT EDIT)
:: =========================================================

:: Relative offset inside app-only binary
set CRC_SIZE=4
set /a CRC_OFFSET=CRC_ADDR - APP_START
set /a CRC_END=CRC_ADDR + CRC_SIZE
set /a CRC_OFFSET_END=CRC_OFFSET + CRC_SIZE

:: --------------------------------------------------------
:: Step 1: Build temporary APROM image and calculate CRC
:: (Used only for CRC calculation / dump)
:: --------------------------------------------------------
%SREC% ^
  %APP_BIN% -binary ^
  -offset %APP_START% ^
  -fill 0xFF %APROM_BASE% %APROM_SIZE% ^
  -crop %APROM_BASE% %CRC_ADDR% ^
  -crc32-l-e %CRC_ADDR% ^
  -o %TMP_IMG% -binary

if errorlevel 1 goto err

:: --------------------------------------------------------
:: Step 2: Write CRC back to app-only binary (relative offset)
:: --------------------------------------------------------
%SREC% ^
  %APP_BIN% -binary ^
  -fill 0xFF 0x0000 %APP_SIZE% ^
  -crop 0x0000 %CRC_OFFSET% ^
  -crc32-l-e %CRC_OFFSET% ^
  -o %APP_BIN% -binary

:: --------------------------------------------------------
:: Step 3: Dump checksum (last 4 bytes) to terminal
:: --------------------------------------------------------
echo.
echo ---- CRC32 @ %CRC_ADDR% (HEX dump) ----
%SREC% ^
  %APP_BIN% -binary ^
  -crop %CRC_OFFSET% %CRC_OFFSET_END% ^
  -o - -HEX_Dump


if errorlevel 1 goto err

echo.
echo CRC written back to app-only binary successfully.
exit /b 0

:err
echo CRC generation FAILED
exit /b 1

checksum_config.cmd (the only file need to modify)

@echo off
:: =========================================================
:: Flash absolute layout (DESIGN INTENT)
:: =========================================================

set APROM_BASE=0x0000
set APROM_SIZE=0x20000

set APP_START=0x3000
set APP_SIZE=0x1D000

:: CRC is always at the last 4 bytes of APROM
set CRC_ADDR=0x1FFFC
