FAQ (Nuvoton)

• MCU default config

• MCU current config

---

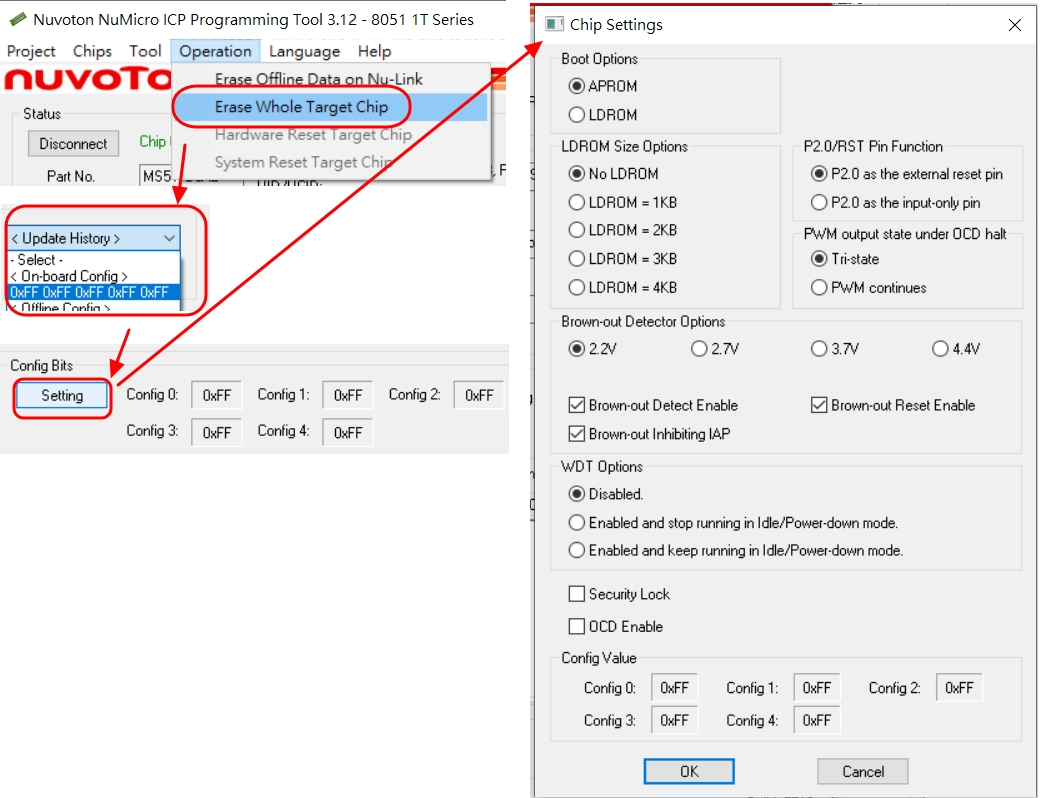

How to reload DEFAULT config from MCU by using ICP tool

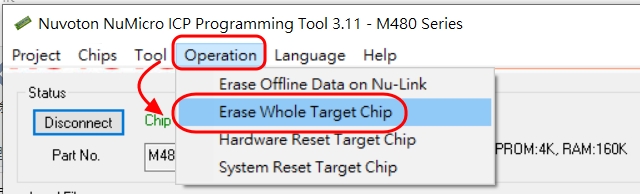

• step 1 : erase MCU flash

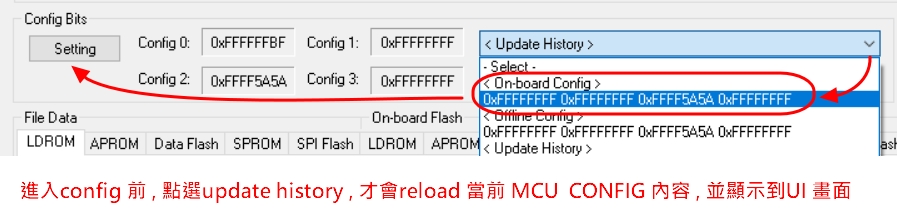

• step 2 : by select On-board Config under Update History , to reload config from MCU

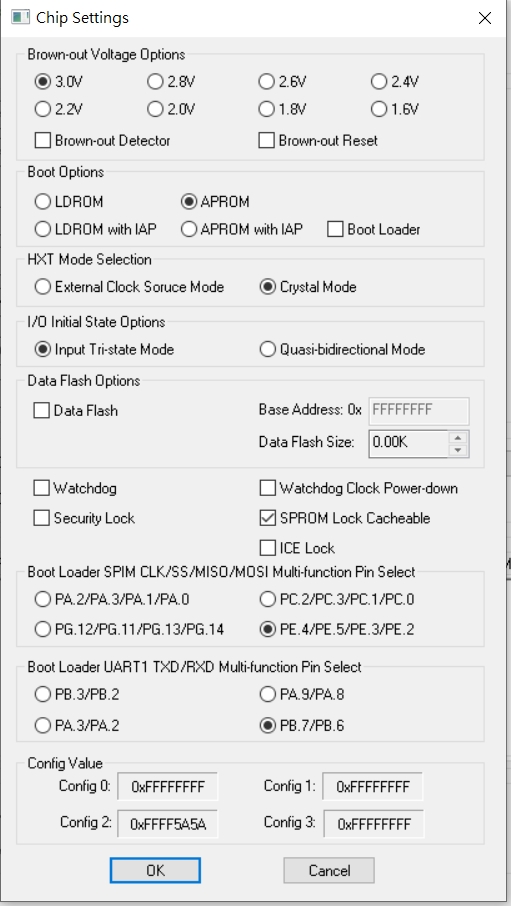

• step 3 : Select Config Bits Setting , will display default config setting

back to top

---

How to reload CURRENT config from MCU by using ICP tool

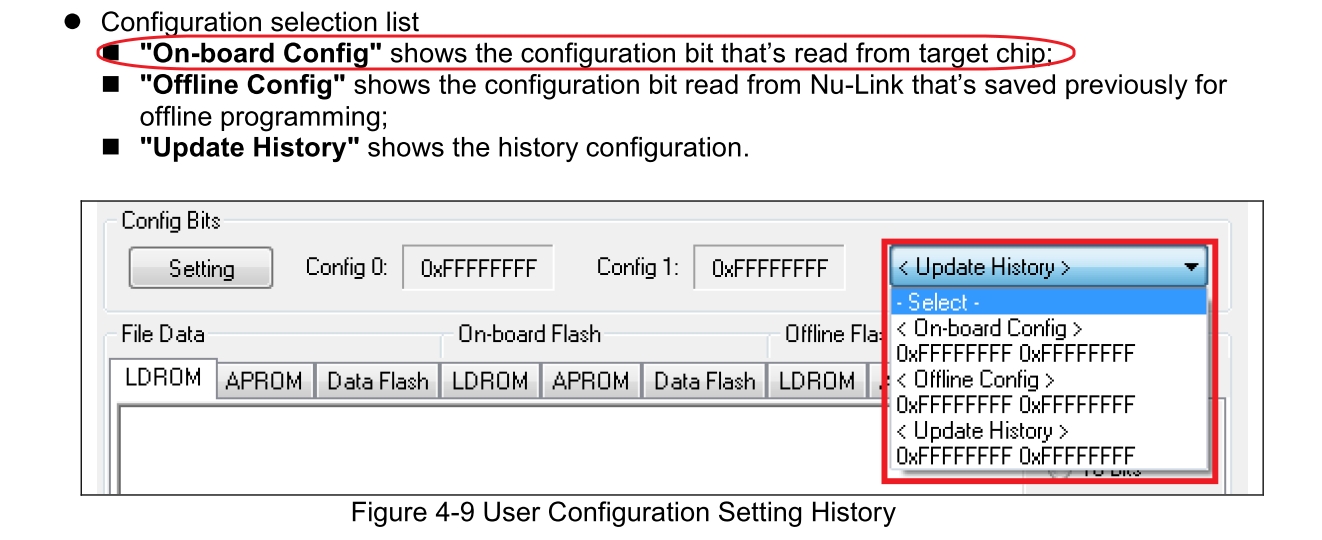

• step 1 : by select On-board Config under Update History , to reload config from MCU

• step 2 : Select Config Bits Setting , will display default config setting

back to top

---
